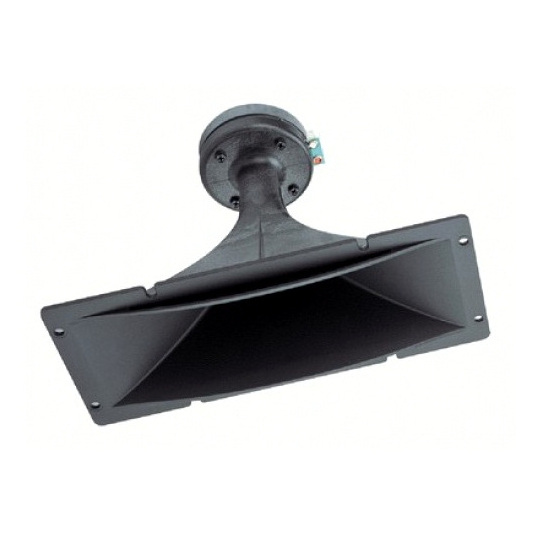

The P Audio PHT-404P is an integrated high frequency horn and compression driver. The design yields very extended high frequency response and controlled directivity in a rectangular geometry. The rated coverage pattern is 100 degree horizontal by 60 degree vertical. This rated coverage pattern is ideal for short throw applications such as foreground and background music system designs found in restaurants, pubs, and retail environments.

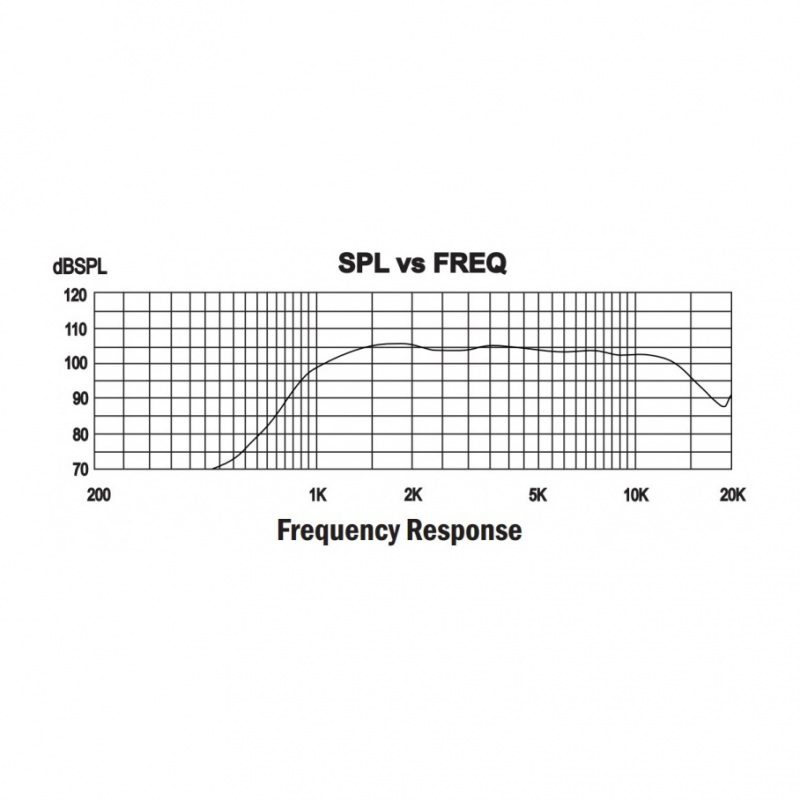

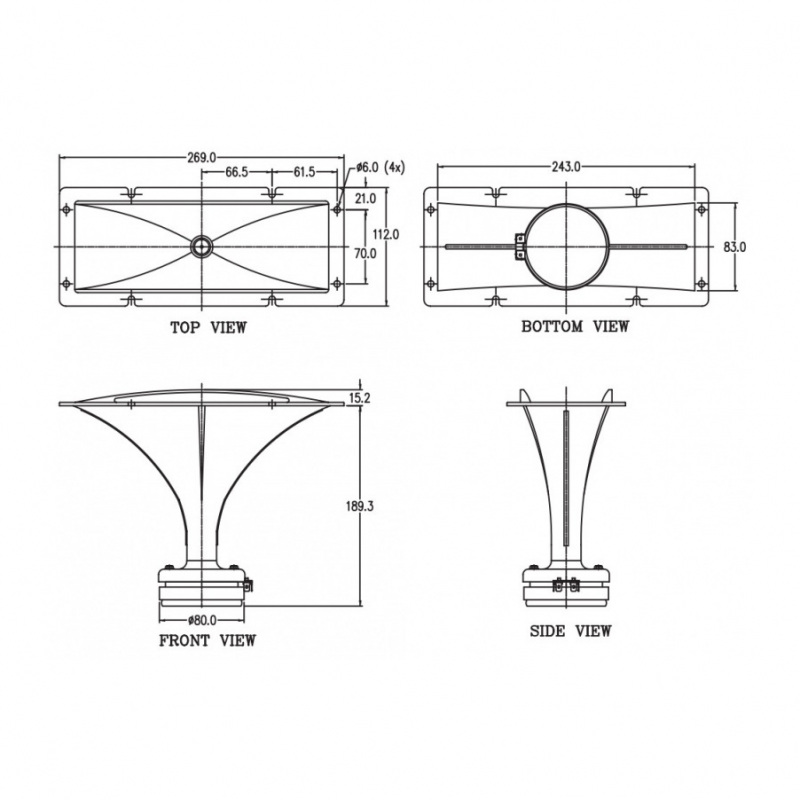

The PHT-404P has a rated bandwidth of 3kHz to beyond 16kHz. This frequency response range makes the system excellent for wide coverage upper midrange and high frequency operation. The PHT-404P is ideally mated with a 10 inch, or 8 inch low frequency loudspeaker in a two way design. The PHT-404P features a 1 inch diameter (25.4mm) phenolic based diaphragm assembly. The small format (1 inch) diaphragm is ideal for maintaining piston range performance in the upper frequency range. The wide horizontal mouth (10.6 inches, 269mm) maintains very good horizontal coverage control. The high sensitivity of 105 dB (1 watt at 1 meter) allows the PHT-404P to be used in medium sized venues. The horn is made of a rugged glass filed ABS plastic resin and the critical compression driver components are all controlled by P Audio's advanced quality and manufacturing systems.
