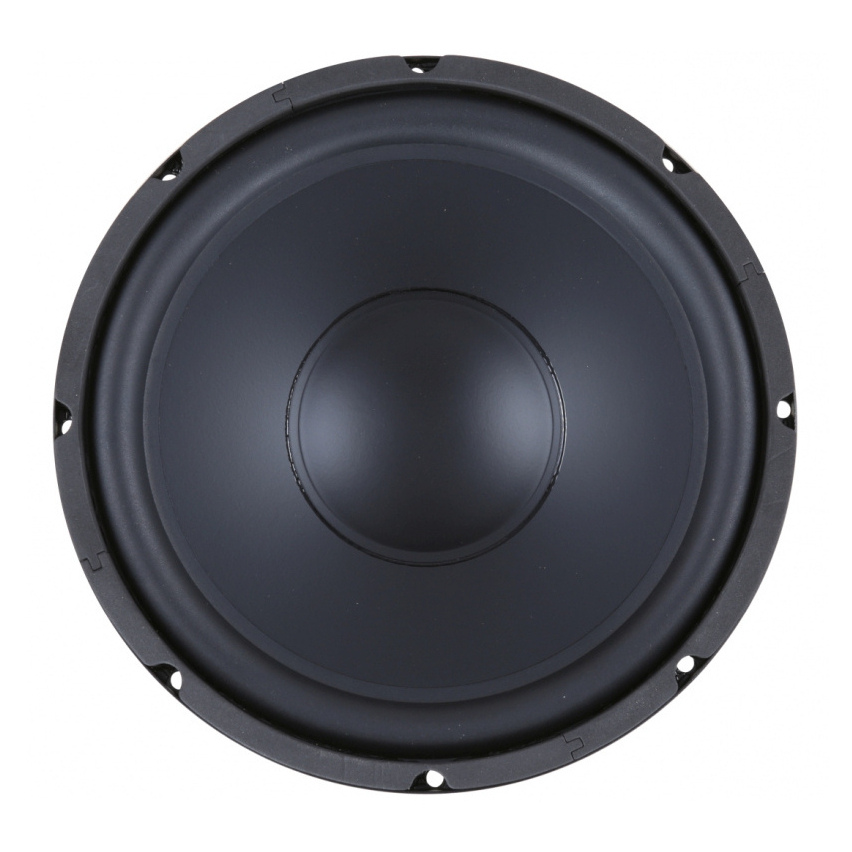

Lavoce SSF102.40 - 10" 250W 8 Ohm Loudspeaker
SPL: 86.0dB Fs: 39Hz Xmax: 8.3mm

Product Code: LAVSSF10240AF | Brand: Lavoce
Lavoce SSF102.40 - 10 inch 250W 8 Ohm Loudspeaker

Lavoce SSF102.40 - 10 inch 250W 8 Ohm Loudspeaker Lavoce SSF102.40 - 10 inch 250W 8 Ohm Loudspeaker Lavoce SSF102.40 - 10 inch 250W 8 Ohm Loudspeaker Lavoce SSF102.40 - 10 inch 250W 8 Ohm Loudspeaker
£56.92
£47.43 ex VAT
Login to see JAM Club pricing
Not a member? Join Now
£3.11 DELIVERY to mainland UK.
Lavoce SSF102.40 - 10" 250W 8 Ohm Loudspeaker

Key features



- 2.4 INCH CCAW VOICE COIL
- 86 dB/SPL SENSITIVITY
- 500 WATT PROGRAM POWER HANDLING
- 24,6 mm (0.9 INCH) PEAK TO PEAK MAXIMUM EXCURSION
- FEM OPTIMIZED MOTOR AND SUSPENSIONS
- 83 mm INSTALLATION DEPTH
- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN
- RUBBER SURROUND MATERIAL

Technical specifications


  • Nominal Diameter: 250 mm (10in)
  • Impedance: 8 Ohm
  • Minimum Impedance: 7.7 Ohm
  • AES Power: 250 W
  • Program Power: 500 W
  • Sensitivity: 86 dB
  • Frequency Range: 40 - 500 Hz
  • Voice Coil Material: CCAW
  • Voice Coil Former: Glass Fiber
  • Voice Coil Depth: 20.5 mm (0.81in)
  • Magnetic Gap Depth: 8 mm (0.31in)
  • Cone Material: Water Resistant Treated Paper
  • Surround Material: Rubber
  • Chassis Material: Steel
  • Magnet Material: Ferrite
  • Magnet Dims: 140 x 70 x 20 mm
  • Driver Displacement Volume: 1.5 l (0.3ft3)
  • Recommended Enclosure: 37.7 l (1.50ft3)
  • Recommended Tuning: 45 Hz

Thiele and small parameters


  • DC Resistance (Re) - 6.7 Ohm
  • Resonance (Fs) - 39 Hz
  • Moving Mass - System (Mms) - 73.4 g
  • Compliance (Cms) - 0.228 mm/N
  • Force Factor (BL) - 14.01 Tm
  • Mechanical Q (Qms) - 9.96
  • Electrical Q (Qes) - 0.61
  • Total Q (Qts) - 0.57
  • Compliance Equivalent Volume (Vas) - 42.55 L
  • Voice Coil Inductance (Le) - 2.42 mH
  • Diaphragm Area (Sd) - 363.1 cm2
  • Reference Efficiency (Eta Zero) - 0.39 % %
  • Efficiency Bandwidth Product (EBP) - 64
  • Maximum Linear Excursion (Xmax) - 8.3 mm
  • Maximum Mechanical Excursion (Xmech) - 12.3 mm

Shipping Information


  • Net weight: 3.5 kg (7.6lb)
  • Multipack size (WxDxH): 300 x 300 x 126 mm (11.8 x 11.8 x 5in)
  • Multipack weight: 4.3 kg (9.4lb)
