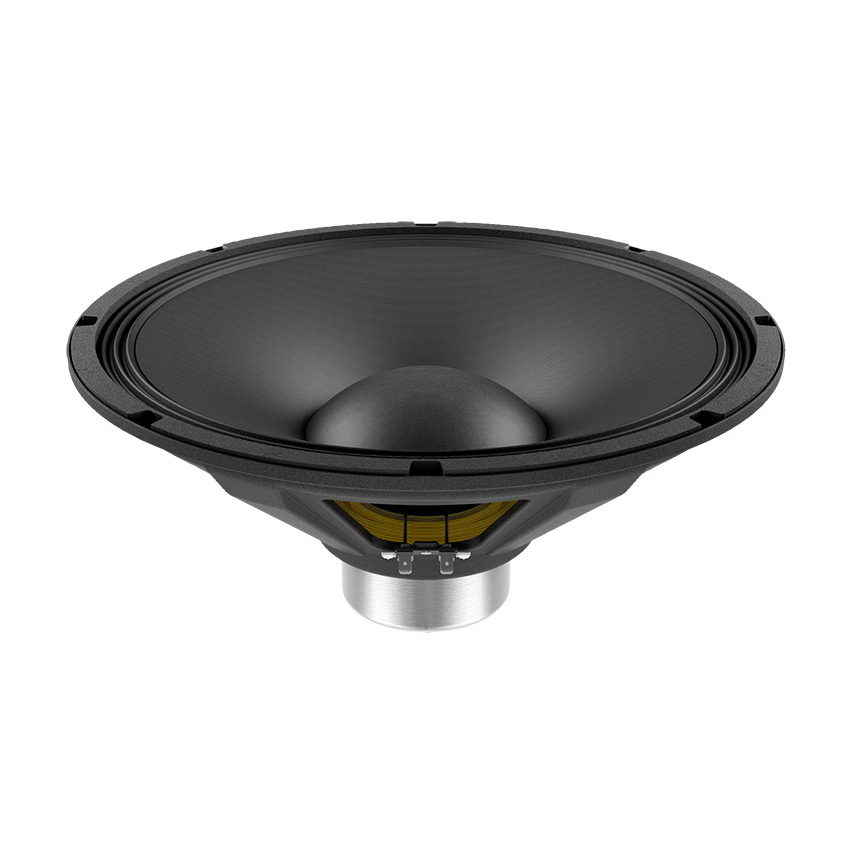

Lavoce NBASS15-30 15" Speaker Driver 400W 8 Ohm
Key features
- 3 INCH COPPER VOICE COIL
- 98 dB/SPL SENSITIVITY
- 800 WATT PROGRAM POWER HANDLING
- TRIPLE ROLL SURROUND
- OVERALL BALANCED AND RICH TONE
- SOLID LOW-END AND TIGHT MID-HIGH’S
- EXTREMELY LIGHTWEIGHT
This product currently has limited availability, the stock amount showing is all that is available. If you try to order a quantity greater than what is showing in stock we will not be able to fulfill your order.
Technical specifications

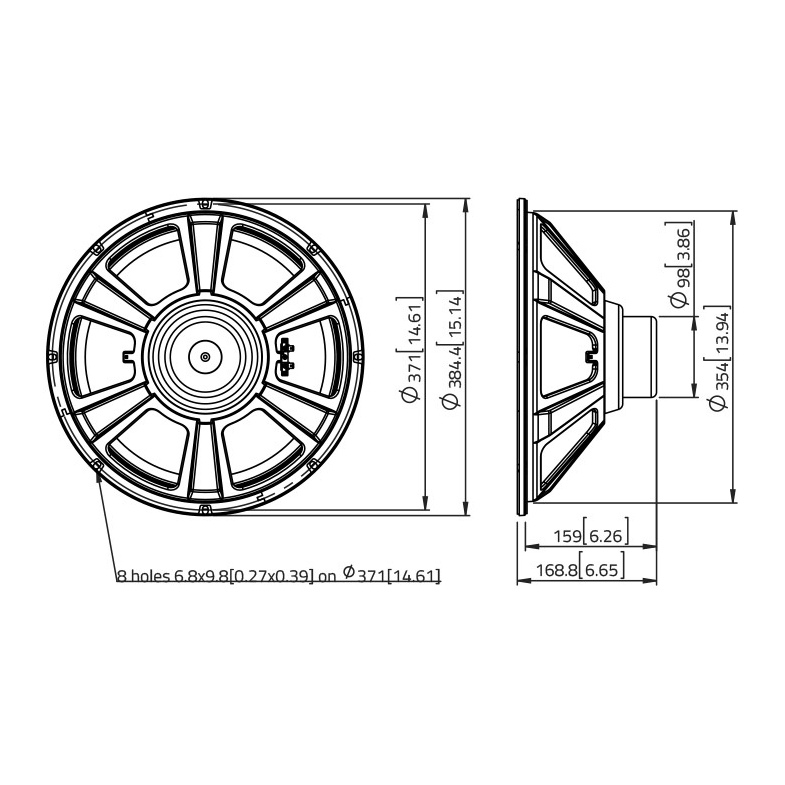

- Nominal Diameter: 380 mm (15in)
- Impedance: 8 Ohm
- Minimum Impedance: 6 Ohm
- AES Power: 400 W
- Program Power: 800 W
- Sensitivity: 98 dB

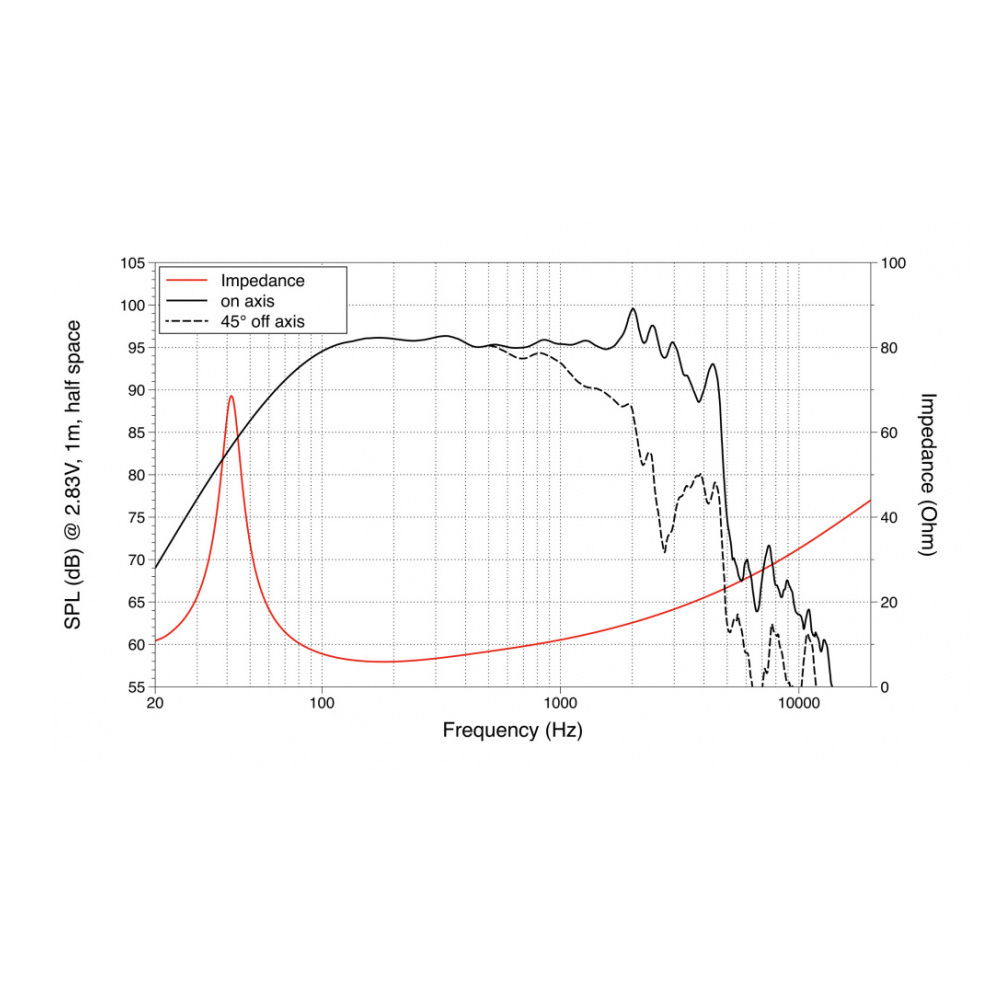

- Frequency Range: 40 - 4000 Hz
- Voice Coil Material: Copper
- Voice Coil Former: Glass fiber
- Voice Coil Depth: 18.6 mm (0.73in)
- Magnetic Gap Depth: 10.5 mm (0.41in)
- Cone Material: Water Proof Treated Paper
- Surround Material: Polycotton
- Chassis Material: Steel
- Magnet Material: Neodymium
- Magnet Dims: 74 x 9 mm
- Driver Displacement Volume: 3.2 l (0.1ft3)
Thiele and small parameters
- DC Resistance (Re) - 5.2 Ohm
- Resonance (Fs) - 42 Hz
- Moving Mass - System (Mms) - 107 g
- Compliance (Cms) - 0.14 mm/N
- Force Factor (BL) - 19 Tm
- Mechanical Q (Qms) - 5
- Electrical Q (Qes) - 0.4
- Total Q (Qts) - 0.37
- Compliance Equivalent Volume (Vas) - 140 L
- Voice Coil Inductance (Le) - 1.06 mH
- Diaphragm Area (Sd) - 855 cm2
- Reference Efficiency (Eta Zero) - 2.4% %
- Maximum Linear Excursion (Xmax) - 6.6 mm
- Maximum Mechanical Excursion (Xmech) - 12.5 mm
Shipping Information
- Net weight: 3.5 kg (7.7lb)
- Multipack size (WxDxH): 438 x 438 x 212 mm (17.2 x 17.2 x 8.3in)
- Multipack weight: 5.7 kg (12.5lb)
