Lavoce DN20.40T - 2" 130W 8 Ohm Compression Driver
Key features
- 108 dB/SPL SENSITIVITY
- 260 W PROGRAM POWER HANDLING
- FEM OPTIMIZED MOTOR, PHASEPLUG AND DIAPHRAGM
- 500 - 20000 Hz FREQUENCY RANGE
- TITANIUM DIAPHRAGM
- NEXT GENERATION HF DESIGN
- PATENTED IIS INTEGRAL INPUT SURFACE PHASEPLUG
Technical specifications
- Throat Diameter: 50 mm (2.0 in)
- Impedance: 8 Ohm
- Minimum Impedance: 8.0 Ohm
- AES Power: 130 W
- Program Power: 260 W
- Sensitivity: 108 dB
- Frequency Range: 500 - 20000 Hz
- Voice Coil Material: Edgewound CCA
- Voice Coil Former: Kapton
- Voice Coil Inductance: 0.17 mH
- Diaphragm Material: Titanium
- Surround Material: Titanium
- Magnet Material: Neodymium

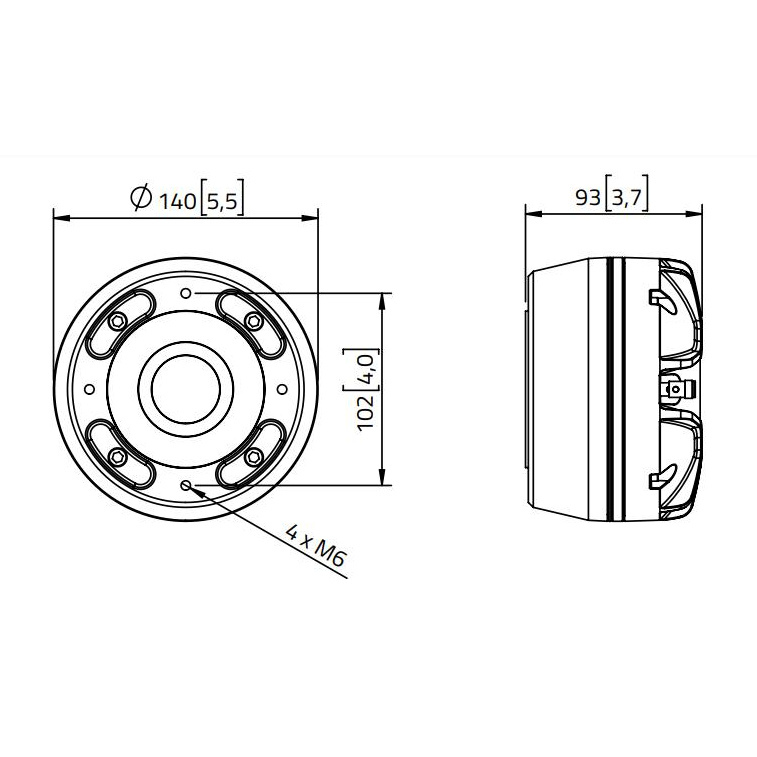

- Magnet Diameter: 140 mm (5.5 in)
- Flux Density: 1.9 T
- Driver Displacement Volume: 0.7 l (0.025 ft3)
- Recommended Crossover: 0.8 kHz
Shipping Information
- Multipack weight: 21 kg (46.3lb)
- Multipack size W x D x H: 340 x 362 x 238 mm (13.4 x 14.3 x 9.4in)
- Net weight: 2.4 kg (5.3lb)
- Multipack Quantity: 4
NOTES
1 - Program power is defined as 3 dB greater than AES Power
2 - AES Power: Horn loaded test for 2h with continuous, band-limited (2500-20000 Hz, 12dB/oct.) pink noise as per AES 2-1984 Rev. 2003.
3 - Sensitivity: Measured on axis at 2.83V, 1m, driver loaded with 60° x 40° horn, SPL averaged in the frequency range 2000 - 18000 Hz.
4 - Recommended Crossover: High pass filter with slope 12dB/oct. or higher.
