This is a new product, which is not yet available. Preliminary information for reference only. Specifications may change. | ||

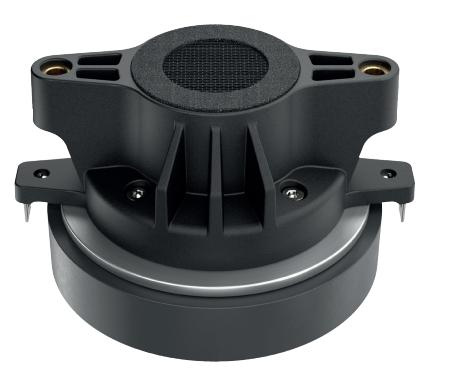

Lavoce DF10.103M 1" Compression Driver 25W 8 Ohm
Key features
1 inch ccaw voice coil
109 db/spl sensitivity
50 w program power handling
Fem optimized motor, phaseplug and diaphragm
1200 20000 hz frequency range
Polyester diaphragm and surround
Annular diaphragm design
High sensitivity with low distortion
Extended low frequency to 1900 hz
Technical specifications
- Throat Diameter: 25.4 mm (1 in)
- Impedance: 8 Ohm
- Minimum Impedance: 6 Ohm
- AES Power: 25 W
- Program Power: 50 W
- Sensitivity: 109 dB
- Frequency Range: 1200 - 20000 Hz
- Voice Coil Diameter: 25.4 mm (1 in)
- Voice Coil Material: CCAW
- Voice Coil Former: Kapton
- Voice Coil Inductance: 0.035 mH
- Diaphragm Material: Polyester
- Surround Material: Polyester
- Magnet Material: Ferrite
- Magnet Diameter: 85 mm (3.35 in)
- Flux Density: 1.75 T
- Driver Displacement Volume: 0.2 l (0.007 ft3)
- Recommended Crossover: 1.9 kHz
Shipping Information
- Multipack weight: 16.8 kg (37lb)
- Multipack size W x D x H: 411 x 375 x 188 mm (16.2 x 14.8 x 7.4in)
- Net weight: 0.82 kg (1.8lb)
- Multipack Quantity: 12
NOTES
1 - Program power is defined as 3 dB greater than AES Power
2 - AES Power: Horn loaded test for 2h with continuous, band-limited (2500-20000 Hz, 12dB/oct.) pink noise as per AES 2-1984 Rev. 2003.
3 - Sensitivity: Measured on axis at 2.83V, 1m, driver loaded with 60° x 40° horn, SPL averaged in the frequency range 2000 - 18000 Hz.
4 - Recommended Crossover: High pass filter with slope 12dB/oct. or higher.
