Faital Pro HF200 2" Compression Driver 70 W 8 Ohm
Nominal Specifications
- Throat Diameter - 50.8 mm (2 in)
- Overall Diameter - 130.5 mm (5.14 in)
- 90° Mounting Holes Diameter (4xM6) - 102 mm (4.02 in)
- Depth - 95 mm (3.74 in)
- Net Weight - 3.2 Kg (7.1 lb)
- Shipping Box - 185 x 170 x 122 mm (7.3 x 6.7 x 4.8 in)
- Shipping Weight - 3.4 Kg (7.5 lb)
Technical specifications
- Throat Diameter: 50.8 Inches (2 in)
- Exit Angle: 24 °
- Overall Diameter: 130.5 mm (5.14 in)
- Mounting Holes Diameter: 102 mm (90° 4xM6)
- Overall Depth: 95 mm (3.74 in)
- Impedance: 8 ohm
- Minimum Impedance: 5.8 ohm
- DC Resistance: 5.6 ohm
- Sensitivity: 109 dB

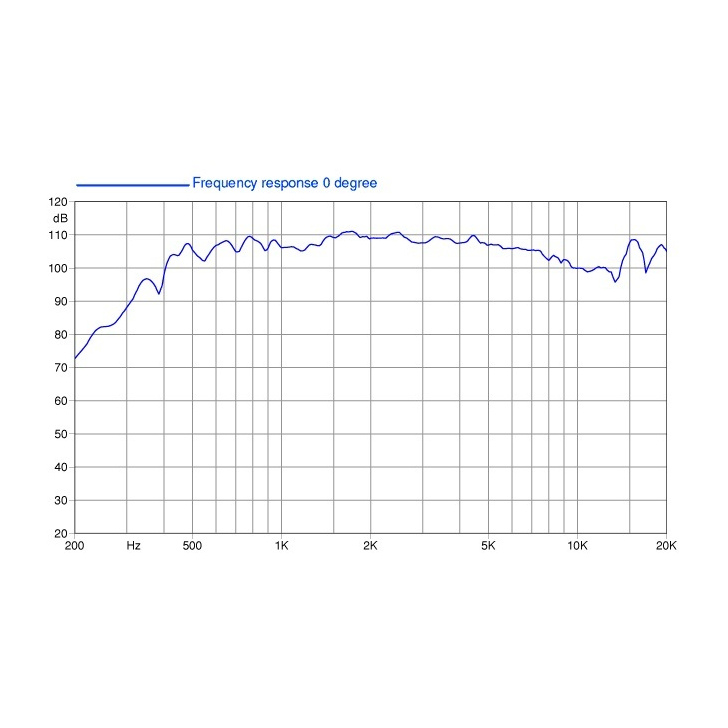

- Frequency Range: 0.5:18 kHz
- Voice Coil Diameter: 74 mm (2.91 in)
- Voice Coil Material: Al
- Voice Coil Former: Kapton
- Voice Coil Depth: 2.35 mm (0.09 in)
- Magnetic Gap Depth: 2.8 mm (0.11 in)
- Diaphragm Material: Titanium
- Diaphragm Shape: Dome
- Phase Plug Design: Annular
- Magnet Material: Neodymium Slug Crown
- Flux Density: 1.8 T
- Driver Displacement Volume: 1.10 L (0.039 ft^3)
- Minimum Crossover Frequency: 0.9 kHz
Shipping Information
- Net Weight: 3.2 kg (7.1 lb)
- Shipping Weight: 3.4 kg (7.5 lb)
- Shipping Box: 185 x 170 x 122 mm
