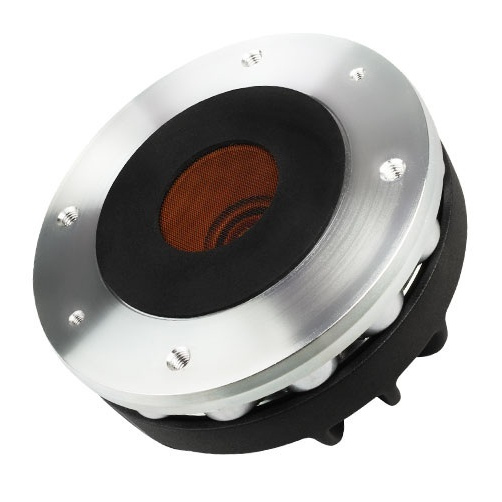

Faital Pro HF146 1.4" Compression Driver 80 W 16 Ohm


Product Code: FTPHF146BP | Brand: Faital Pro
Faital Pro HF146 1.4 inch Compression Driver 80 W 16 Ohm

Faital Pro HF146 1.4 inch Compression Driver 80 W 16 Ohm Faital Pro HF146 1.4 inch Compression Driver 80 W 16 Ohm Faital Pro HF146 1.4 inch Compression Driver 80 W 16 Ohm Faital Pro HF146 1.4 inch Compression Driver 80 W 16 Ohm
£175.15
£145.96 ex VAT
2-3 £172.52 ea.4-7 £169.90 ea.8+ £166.39 ea.
Login to see JAM Club pricing
Not a member? Join Now
FREE DELIVERY for mainland UK
Faital Pro HF146 1.4" Compression Driver 80 W 16 Ohm

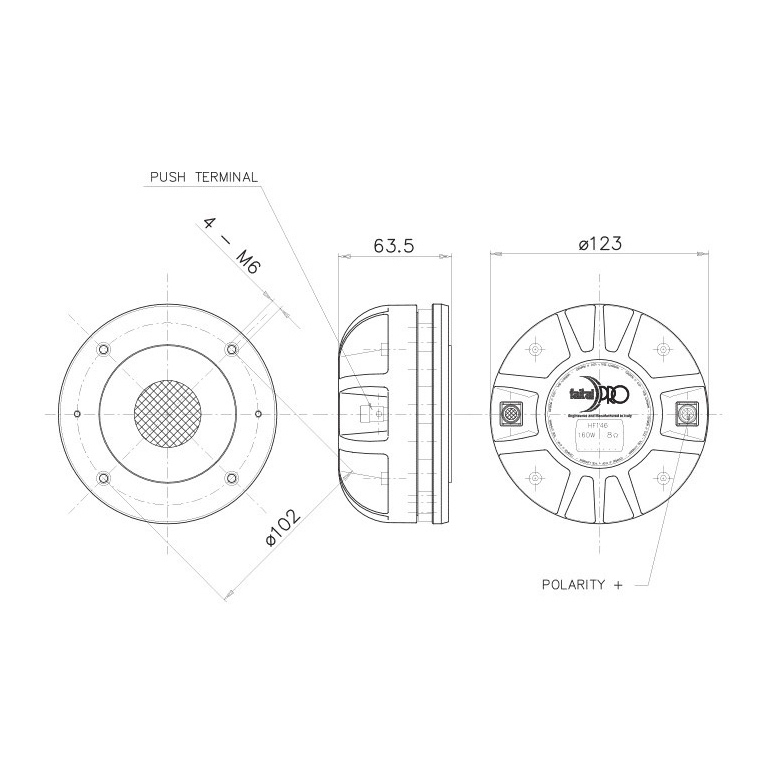

Nominal Specifications


  • Throat Diameter - 35.6 mm (1.4 in)
  • Overall Diameter - 123 mm (4.84 in)
  • 90° Mounting Holes Diameter (4xM6) - 102 mm (4.02 in)
  • Depth - 63.5 mm (2.50 in)
  • Net Weight - 2 Kg (4.4 lb)
  • Shipping Box - 185 x 170 x 122 mm (7.3 x 6.7 x 4.8 in)
  • Shipping Weight - 2.3 Kg (5.1 lb)

Technical specifications


  • Throat Diameter: 35.6 Inches (1.4 in)
  • Overall Diameter: 123 mm (4.84 in)
  • Overall Depth: 63.5 mm (2.50 in)

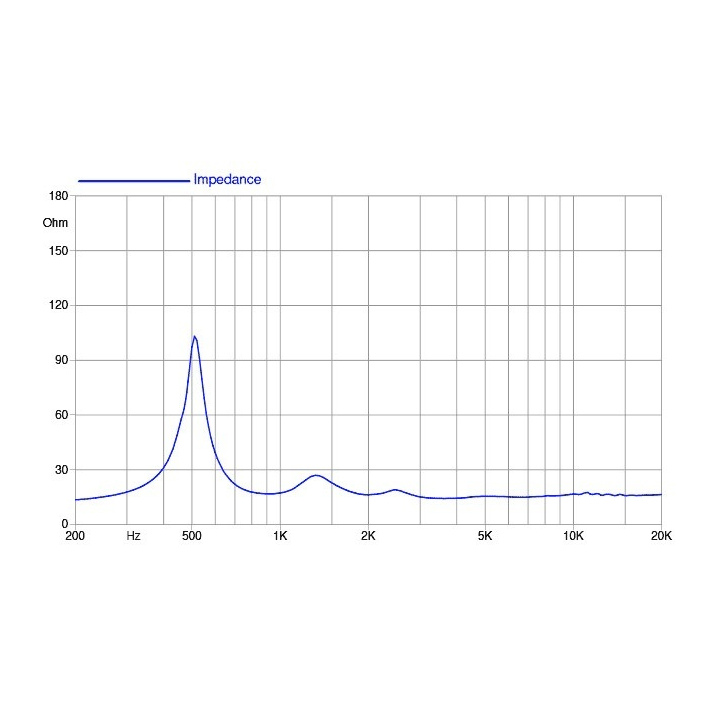

  • Impedance: 16 ohm
  • Minimum Impedance: 14.4 ohm
  • Sensitivity: 109 dB

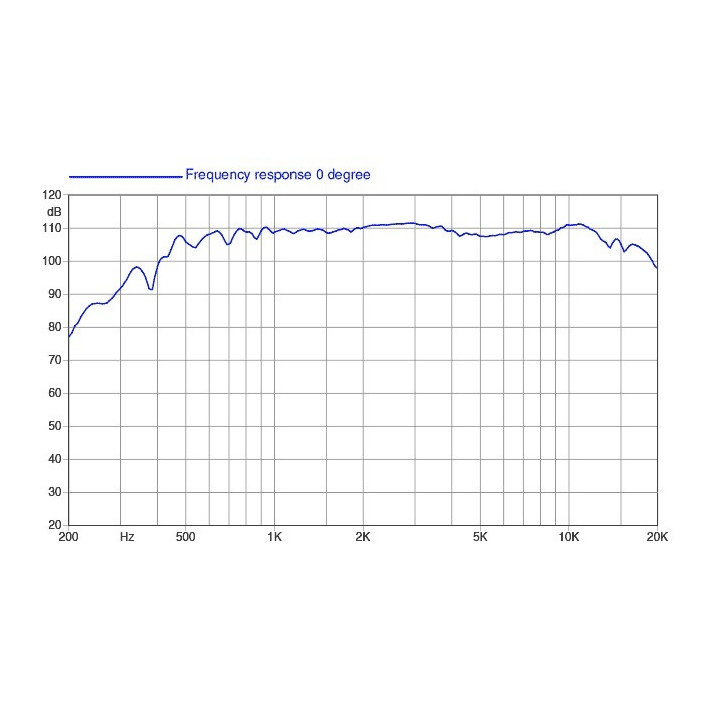

  • Frequency Range: 0.7:18 Hz
  • Voice Coil Diameter: 65 mm (2.56 in)
  • Voice Coil Material: Al
  • Voice Coil Former: Kapton
  • Voice Coil Depth: 3.75 mm (0.15 in)
  • Magnetic Gap Depth: 4.2 mm (0.17 in)
  • Diaphragm Material: Ketone
  • Magnet Material: Neodymium Slug Crown
  • Flux Density: 1.7 T


Shipping Information


  • Net Weight: 2 kg (4.4 lb)
  • Shipping Weight: 2.3 kg (5.1 lb)
  • Shipping Box: 185 x 170 x 122 mm
