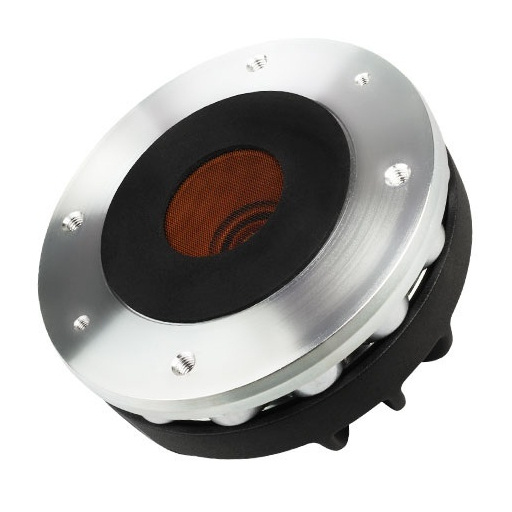

Faital Pro HF146 1.4" Compression Driver 80 W 8 Ohm

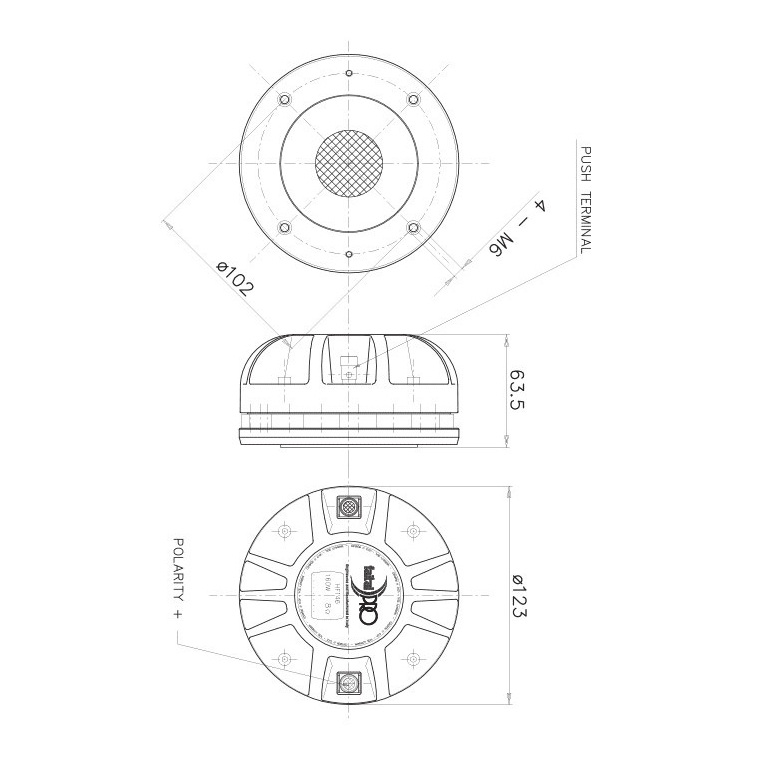

Nominal Specifications
- Throat Diameter - 35.6 mm (1.4 in)
- Overall Diameter - 123 mm (4.84 in)
- 90° Mounting Holes Diameter (4xM6) - 102 mm (4.02 in)
- Depth - 63.5 mm (2.5 in)
- Net Weight - 2 Kg (4.4 lb)
- Shipping Box - 185 x 170 x 122 mm (7.3 x 6.7 x 4.8 in)
- Shipping Weight - 2.3 Kg (5.1 lb)
Technical specifications
- Throat Diameter: 35.6 Inches (1.4 in)
- Exit Angle: 29 °
- Overall Diameter: 123 mm (4.84 in)
- Mounting Holes Diameter: 102 mm (90° 4xM6)
- Overall Depth: 63.5 mm (2.5 in)
- Impedance: 8 ohm
- Minimum Impedance: 6.8 ohm
- DC Resistance: 5.5 ohm
- Sensitivity: 109 dB
- Frequency Range: 0.7:18 kHz
- Voice Coil Diameter: 65 mm (2.56 in)
- Voice Coil Material: Al
- Voice Coil Former: Kapton
- Voice Coil Depth: 3 mm (0.12 in)
- Magnetic Gap Depth: 4.2 mm (0.17 in)
- Diaphragm Material: Ketone
- Diaphragm Shape: Dome
- Phase Plug Design: Annular
- Magnet Material: Neodymium Slug Crown
- Flux Density: 1.7 T
- Driver Displacement Volume: 0.55 L (0.019 ft^3)
- Minimum Crossover Frequency: 0.9 kHz
Shipping Information
- Net Weight: 2 kg (4.4 lb)
- Shipping Weight: 2.3 kg (5.1 lb)
- Shipping Box: 185 x 170 x 122 mm
