Faital Pro HF142 1.4" 80W 8 Ohm Compression Driver
NOMINAL SPECIFICATIONS
- Throat Diameter 35.6 mm (1.4 in)
- Overall Diameter 115 mm (4.53 in)
- 90 degrees Mounting Holes Diameter (4xM6) 102 mm (4.02 in)
- Depth 54.5 mm (2.15 in)
- Net Weight 1.64 Kg (3.6 lb)
- Shipping Box (Single carton box) 185 x 170 x 122 mm (7.3 x 6.7 x 4.8 in)
- Shipping Weight 1.95 Kg (4.3 lb)
Technical specifications
- Throat Diameter: 35.6 Inches (1.4 in)
- Exit Angle: 29 °
- Overall Diameter: 115 mm (4.53 in)
- Mounting Holes Diameter: 102 mm (90° 4xM6)
- Overall Depth: 54.5 mm (2.15 in)

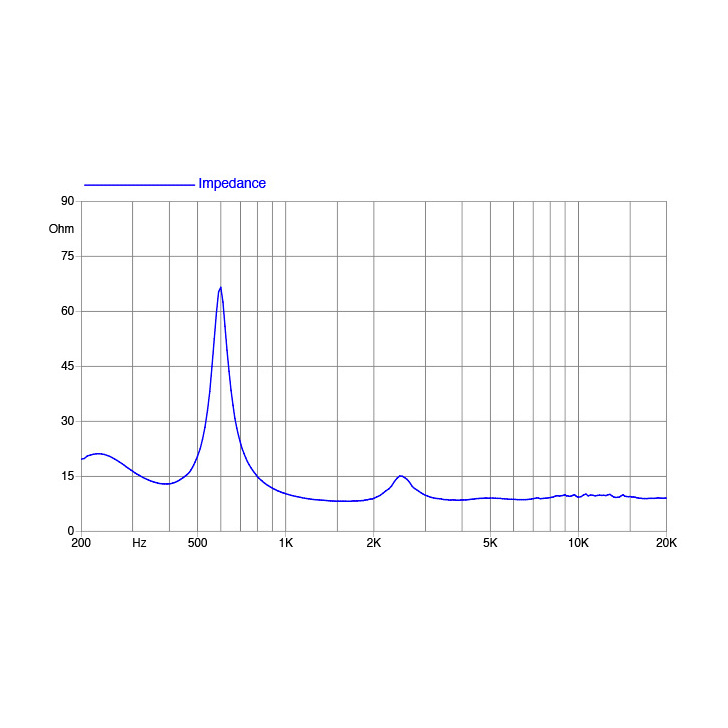

- Impedance: 8 ohm
- Minimum Impedance: 8.4 ohm
- DC Resistance: 6.7 ohm

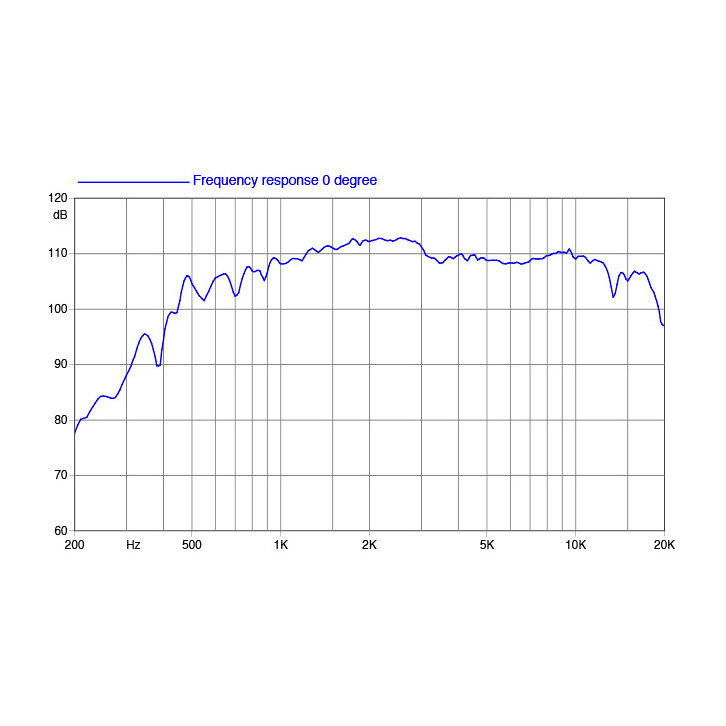

- Sensitivity: 110 dB
- Frequency Range: 0.7:18 kHz
- Voice Coil Diameter: 65 mm (2.56 in)
- Voice Coil Material: Al
- Voice Coil Former: Kapton
- Voice Coil Depth: 2.1 mm (0.08 in)
- Magnetic Gap Depth: 4.2 mm (0.17 in)
- Diaphragm Material: Ketone
- Diaphragm Shape: Dome
- Phase Plug Design: Annular
- Magnet Material: Neodymium Ring
- Flux Density: 1.8 T
- Driver Displacement Volume: 0.4 L (0.014 ft^3)
- Minimum Crossover Frequency: 0.9 kHz
Shipping Information
- Net Weight: 1.64 kg (3.6 lb)
- Shipping Weight: 1.95 kg (4.3 lb)
- Shipping Box: 185 x 170 x 102 mm
