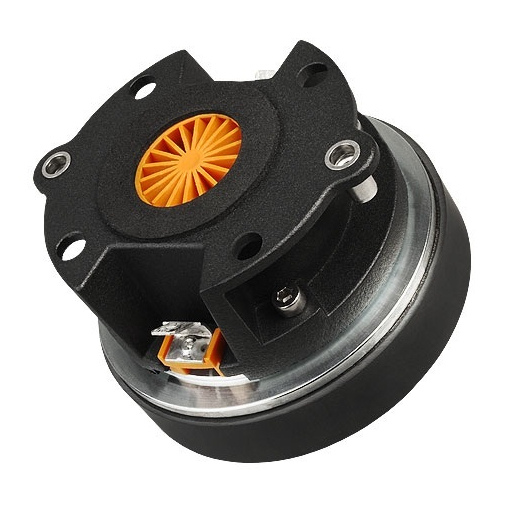

Faital Pro HF105 1" Compression Driver 40 W 16 Ohm
Nominal Specifications
- Throat Diameter - 25.4 mm (1 in)
- Overall Diameter - 91 mm (3.58 in)
- 180° Mounting Holes Diameter (2xM5) - 76 mm (2.99 in)
- Depth - 61 mm (2.40 in)
- Net Weight - 1.1 Kg (2.4 lb)
- Shipping Box - 147 x 130 x 82 mm (5.8 x 5.1 x 3.2 in)
- Shipping Weight - 1.1 Kg (2.4 lb)
Technical specifications
- Throat Diameter: 25.4 Inches (1 in)
- Exit Angle: Combined °
- Overall Diameter: 91 mm (3.58 in)
- Mounting Holes Diameter: 76 mm (180° 2xM5)
- Overall Depth: 61 mm (2.40 in)
- Impedance: 8 ohm
- Minimum Impedance: 6.7 ohm
- AES Power: 40 W
- Program Power: 80 W
- DC Resistance: 5.5 ohm
- Sensitivity: 107 dB
- Frequency Range: 1.4:20 kHz
- Voice Coil Diameter: 37 mm (1.46 in)
- Voice Coil Material: Al
- Voice Coil Former: Kapton
- Voice Coil Depth: 2.1 mm (0.08 in)
- Magnetic Gap Depth: 2.6 mm (0.10 in)
- Diaphragm Material: Ketone
- Diaphragm Shape: Annular
- Phase Plug Design: Radial
- Magnet Material: Ferrite Ring
- Flux Density: 1.5 T
- Driver Displacement Volume: 0.26 L (0.009 ft^3)
- Minimum Crossover Frequency: 1.7 kHz
Shipping Information
- Net Weight: 1.1 kg (2.4 lb)
- Shipping Weight: 1.2 kg (2.7 lb)
- Shipping Box: 147 x 130 x 82 mm
