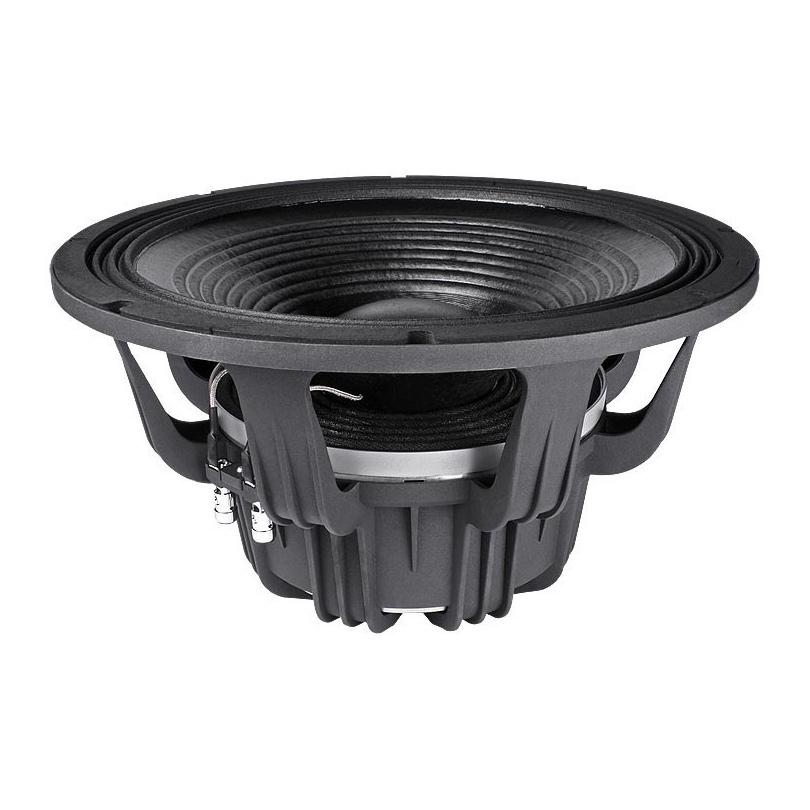

Technical specifications

• Nominal Diameter: 380 mm (15in)
• Overall Diameter: 393 mm (15.47in)
• Bolt Circle Diameter: 374 mm (14.72in)
• Baffle Cutout Diameter: 354 mm (13.94in)
• Overall Depth: 217 mm (8.54in)
• Flange/Gasket Thickness: 14 mm (0.55in)
• Impedance: 8 ohm
• Minimum Impedance: 7.4 ohm
• AES Power: 1400 W
• Program Power: 2800 W
• Sensitivity: 96 dB
• Frequency Range: 40:2500 Hz
• Voice Coil Diameter: 100 mm (4in)
• Voice Coil Material: Cu
• Voice Coil Former: Glass Fiber
• Voice Coil Depth: 31 mm (1.22in)
• Magnetic Gap Depth: 15.5 mm (0.61in)
• Surround Type: Triple
• Spider Profile: 2x non-adjacent symmetrical constant height waves
• Chassis Material: Aluminum
• Magnet Material: Neodymium Slug Crown
• Demodulating Ring: Triple Al Dem. Ring
• Flux Density: 1.05 T
• Driver Displacement Volume: 6 L (0.212ft^3)

Thiele and small parameters

• Resonance (Fs) - 38 Hz
• DC Resistance (Re) - 5.4 Ohm
• Electrical Q (Qes) - 0.34
• Mechanical Q (Qms) - 10.4
• Total Q (Qts) - 0.33
• Compliance Equivalent Volume (Vas) - 91.2 L
• Diaphragm Area (Sd) - 841 cm²
• Maximum Linear Excursion (Xmax) - 12.92 mm
• Maximum Mechanical Excursion (Xdamage) - 28 mm
• Moving Mass - System (Mms) - 190.0 g
• Force Factor (BL) - 26.7 Tm
• Voice Coil Inductance (Le) - 1.6 mH
• Moving Mass - Diaphragm (Mmd) - 162.4 g
• Compliance (Cms) - 0.09 mm/N
• Mechanical Resistance (Rms) - 4.4 Kg/s
• Reference Efficiency (Eta Zero) - 1.41 %
• Efficiency Bandwidth Product (EBP) - 112

Shipping Information

• Net Weight: 11.8 kg (25.9lb)
• Shipping Weight: 13.5 kg (29.8lb)
• Shipping Box: 422 x 417 x 264 mm

Notes

1 - AES Power: 2 Hours Test According to AES 2-1984 Rev. 2003
2 - Maximum/Program power is defined as 3 dB greater than AES Power
3 - Xmax: Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
4 - Xdamage: Maximum excursion before permanent damage
