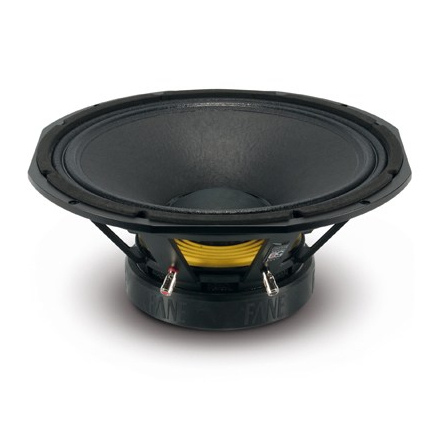

Fane Sovereign Pro 15-600 - 15" 600W 8 Ohm Loudspeaker
The Sovereign Pro15-600 offers excellent linear response and well controlled bass reproduction down to 40 Hz. This makes the unit especially suitable for horn-loaded applications, band-pass enclosures and small size bass reflex systems. The 15-600 is a very good solution for two or three way systems when high BL and maximum punch is required.
- 1200 W Program Power.
- 98 dB Sensitivity (1W/1m).
- Highly versatile solution for two and three-way systems where high BL and maximum punch are required.
- Excellent linear response with well controlled bass reproduction and smooth mid-range performance.
- Especially suited to horn loaded, band pass and compact bass reflex applications.
- UK manufactured cone with optimised pulp offering increased strength, durability and performance.
- 3-inch Copper voice coil.
Electro Acoustic Specifications:
Thiele Small Parameters:
Mounting and Shipping information:
Materials of Construction:
- Nominal Chassis Diameter 15"
- Impedance 8 Ohms
- Power Handling 600W (EIA 426A)
- Peak Power (6dB Crest Factor) 2400W (EIA 426A)
- Usable Frequency Range -6dB 38 Hz - 3.5 kHz
- Sensitivity (1 W - 1 m) 98 dB
- Moving Mass inc. Air Load 89 grams
- Minimum Impedance Zmin 6.5 Ohms
- Effective Piston Diameter 331 mm
- Peak Displacement Volume of Cone Vd 0.513 litres
- Magnet Weight 85 oz
- Magnetic Gap Depth 10 mm
- Flux Density 1.0 Tesla
- Coil Winding Height 18 mm
- Voice Coil Diameter 76.2 mm
Thiele Small Parameters:
- FS Hz 38 Hz
- RE Ohms 5.4 Ohms
- Qms 3.52
- Qes 0.39
- Qts 0.351
- Vas Ltr 201
- Vd litres 0.513
- CMS (mm/N) 0.196
- BL T/m 17.5
- Mms (grms) 89.5
- Xmax (mm) 6
- Sd (cm2) 850
- Efficiency % 2.76
- Le (1k Hz) 1.95 mH
Mounting and Shipping information:
- Overall Diameter 406.4 mm
- Width Across Flats 387 mm
- Flange Height 7.62 mm
- Baffle Hole Diameter F/M 352 mm
- Baffle Hole Diameter R/M 355.6 mm
- Gasket Supplied Front & Rear
- Fixing Holes 4x 7.1mm on 393.7 mm pcd
- Depth 170 mm
- Weight 7.95 kg
- Recommended Enclosure Volume 75 - 150 litres
- Shipping Weight 7.95 kg
- Packing Carton Dimensions 220 x 420 x 420 mm
Materials of Construction:
- Former Material Glass Fibre
- Voice Coil Copper
- Magnet Material Ferrite
- Chassis Die-cast Aluminium
- Cone Curvilinear Polycellulose
- Surround / Edge Termination Polyvinyl Damped Half Roll Linen
- Dust Dome Solid Paper
- Connectors Push-button Spring Terminals
- Polarity Positive Voltage at Red Terminal Causes Forward Motion of Cone
|
| ||||||||||
|
| ||||||||||
