Fane CD.130 (CD130) 30W 1" Compression Driver

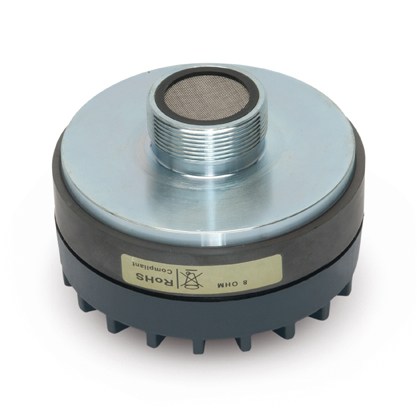

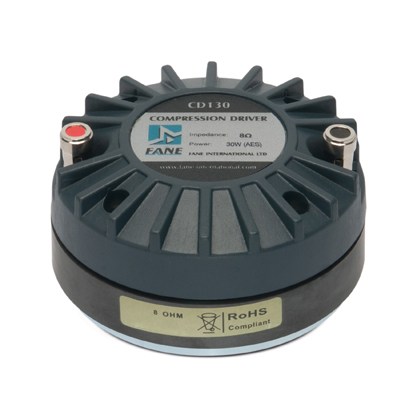

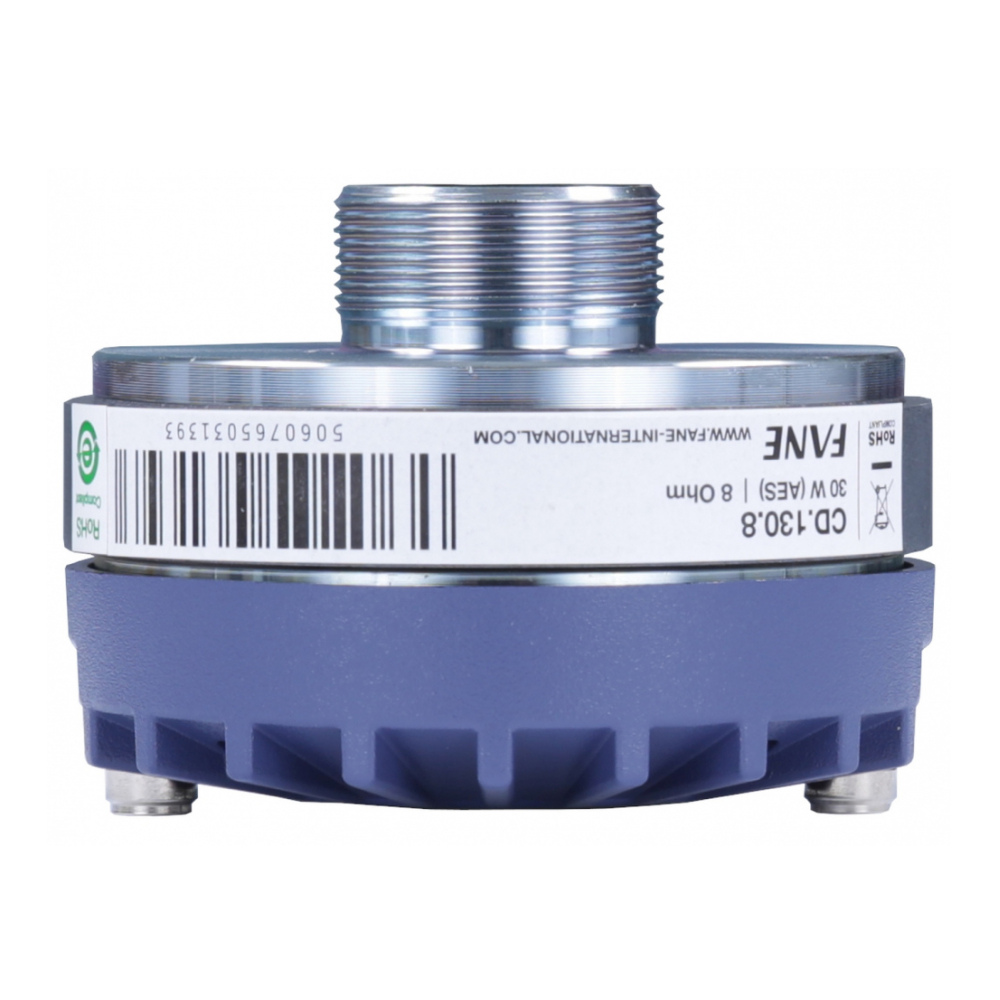

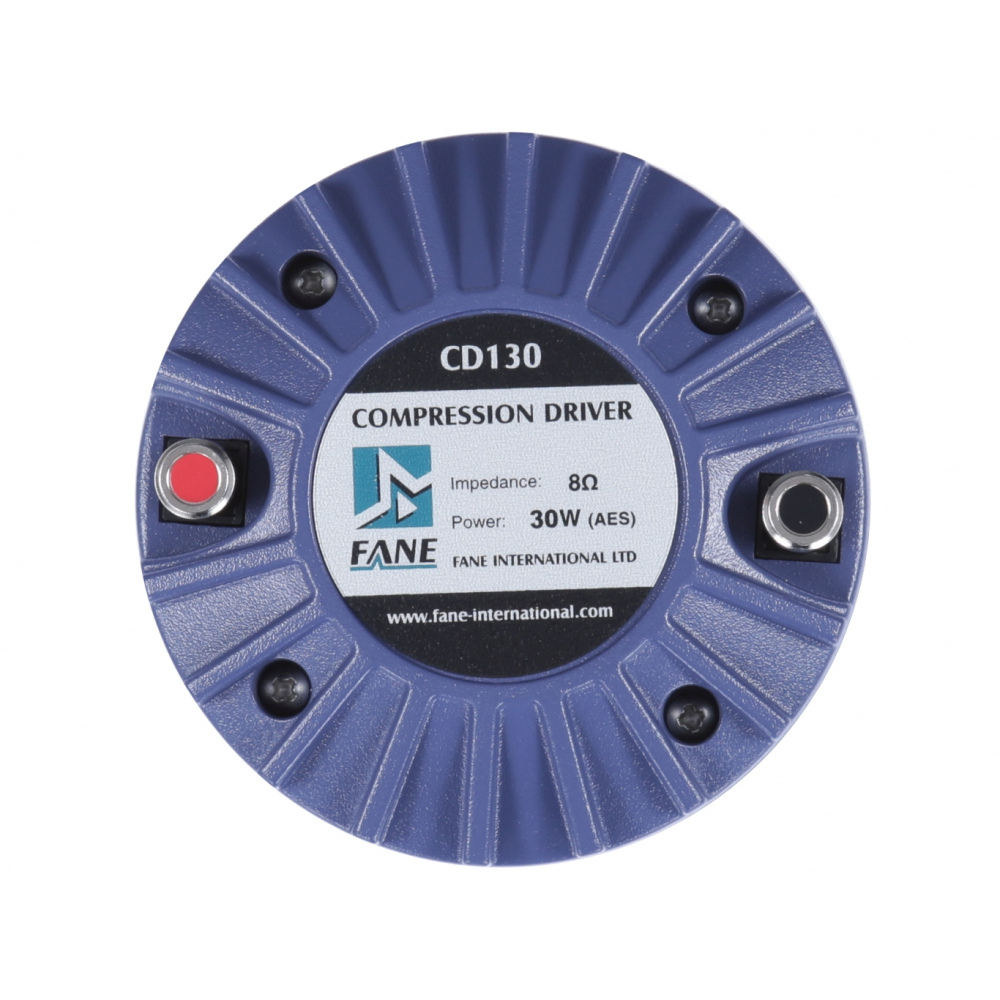

The CD130 is a 1 inch (25.4mm) small format diaphragm compression driver. The 1 inch (25.4mm) exit is an industry standard. The CD-130 combines high BL and a very lightweight diaphragm assembly, producing high output that offers extended bandwidth and well defined frequency response to 18 kHz. The driver has a rated low frequency response limit of 2 kHz and has a smooth response throughout its bandwidth. The CD130 features an industry standard screw fit mounting system that is ideally matched to commercially available female screw thread horns.

  • 1" Industry standard Exit.
  • 1.375" / 34.4 mm Aluminium voice coil.
  • Titanium diaphragm.
  • 30 W (AES)
  • Screw fit mounting.
    ELECTRO ACOUSTIC SPECIFICATIONS
  • Sound Channel / Throat Size 1" / 25.4 mm
  • Rated Impedance 8 Ohms
  • DC Resistance 6.43 Ohms
  • Minimum Impedence 7.5 @ 3 kHz
  • Le (@ 1kHz) 0.01 mH
  • A.E.S Power handling 30W
  • Continuous Pink Noise 40 w (above 2 kHz)
  • Continuous Program 80 w (above 2 kHz)
  • Sensitivity (1 W / 1 m) 106 dB
  • Frequency Range 2 kHz - 18 kHz
  • Recommended Crossover Frequency above 2 kHz
  • Voice Coil Diameter 1.375' / 34.4 mm
  • Flux Density 1.25 Tesla
  • BL Factor 3.39 Tesla

    MOUNTING / SHIPPING INFORMATION
  • Overall Diameter 3.54" / 90 mm
  • Depth 1.73" / 44 mm
  • Weight 2 lb / 0.91 kg
  • Shipping Weight 2.16 lb / 0.98 kg
  • Packing Carton Dimensions 95 x 95 x 71 mm
  • Screw Fit
