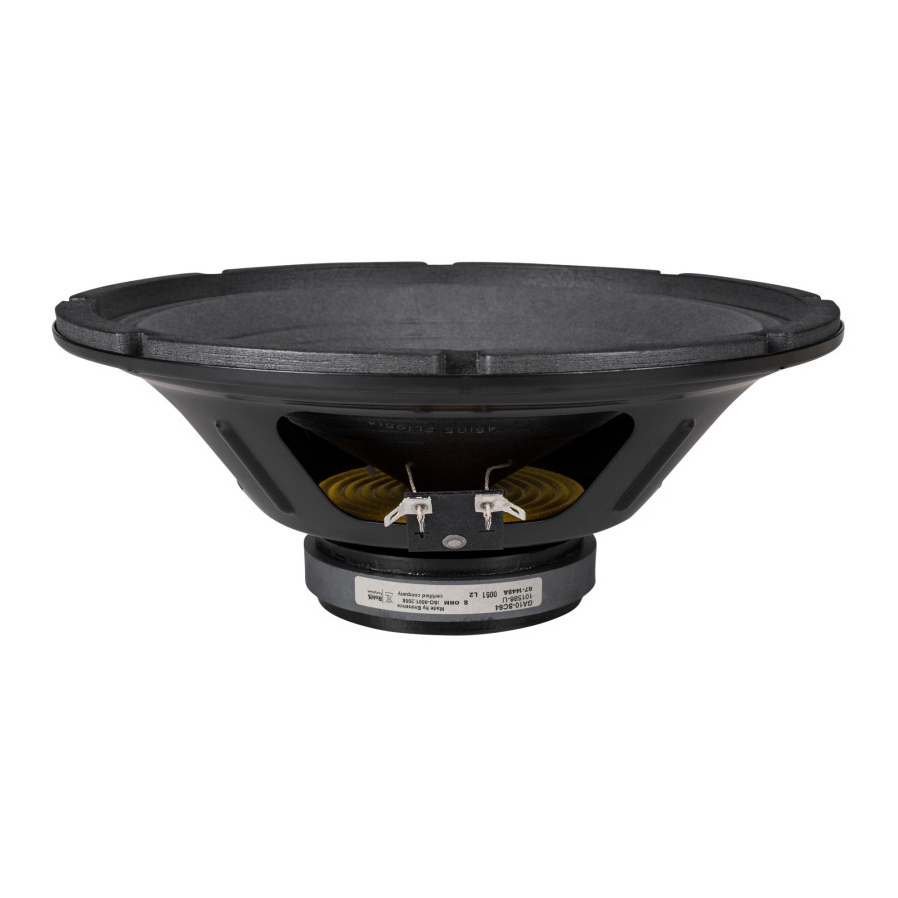

Eminence George Alessandro Signature 10-SC64 - 10" 20W 8 Ohm Guitar Speaker


Product Code: EMISIGGA10SC64 | Brand: Eminence | Model: 10-SC64
Eminence George Alessandro Signature 10-SC64 - 10 inch 20W 8 Ohm Guitar Speaker

Eminence George Alessandro Signature 10-SC64 - 10 inch 20W 8 Ohm Guitar Speaker  Eminence George Alessandro Signature 10-SC64 - 10 inch 20W 8 Ohm Guitar Speaker  Eminence George Alessandro Signature 10-SC64 - 10 inch 20W 8 Ohm Guitar Speaker  Eminence George Alessandro Signature 10-SC64 - 10 inch 20W 8 Ohm Guitar Speaker
£102.10
£85.08 ex VAT
2-3 £100.56 ea.4-7 £99.03 ea.8+ £96.99 ea.
Login to see JAM Club pricing
Not a member? Join Now
FREE DELIVERY for mainland UK
Eminence George Alessandro Signature 10-SC64 - 10" 20W 8 Ohm Guitar Speaker

Tones of 1964 still ring true in this vintage voiced 10 inch speaker by amp guru George Alessandro. Very balanced with dynamic character, this ceramic 10 inch speaker offers tight, punchy tone with nice warmth, richness, and sparkling highs.


SPECIFICATION:

  • Nominal Basket Diameter 10", 254 mm
  • Nominal Impedance* 8 ohms
  • Power Rating*
  • Program Power N/A
  • Watts 20 W
  • Resonance 100 Hz
  • Usable Frequency Range 100 Hz - 5.5 kHz
  • Sensitivity* 98.2 dB
  • Magnet Weight 15 oz.
  • Gap Height 0.25", 6.4 mm
  • Voice Coil Diameter 1", 25 mm


THIELE & SMALL PARAMETERS:

  • Resonant Frequency (fs) 100 Hz
  • DC Resistance (Re) 7.58 ohms
  • Coil Inductance (Le) 0.48m H
  • Mechanical Q (Qms) 16.89
  • Electromagnetic Q (Qes) 1.38
  • Total Q (Qts) 1.28
  • Compliance Equivalent Volume (Vas) 33.49 liters / 1.18 cu.ft.
  • Peak Diaphragm Displacement Volume (Vd) 58.2 cc
  • Mechanical Compliance of Suspension (Cms) 0.18 mm/N
  • BL Product (BL) 7.05 T-M
  • Diaphragm Mass Inc. Airload (MMs) 14 grams
  • Efficiency Bandwidth Product (EBP) 72
  • Maximum Linear Excursion (Xmax) 1.59 mm
  • Surface Area of Cone (Sd) 366.1 cm2
  • Maximum Mechanical Limit (Xlim) N/A


MOUNTING INFORMATION:

  • Recommended Enclosure Volume Sealed Acceptable Vented Acceptable
  • Driver Volume Displaced 0.027 cu.ft. / 0.77 liters
  • Overall Diameter 10.11", 256.8 mm
  • Baffle Hole Diameter 9.13", 231.9 mm
  • Front Sealing Gasket Yes
  • Rear Sealing Gasket N/A
  • Mounting Holes Diameter 0.22", 5.6mm
  • Mounting Holes B.C.D. 9.6", 243.8mm
  • Depth 3.93", 99.7 mm
  • Net Weight 3.3 lbs, 1.5 kg
  • Shipping Weight 4.4 lbs, 2 kgs


MATERIALS OF CONSTRUCTION:

  • Coil Construction Copper voice coil
  • Coil Former Paper former
  • Magnet Composition Ferrite magnet
  • Core Details Non-vented core
  • Basket Materials Pressed steel basket
  • Cone Composition Paper cone
  • Cone Edge Composition Paper cone edge
  • Dust Cap Composition Solid composition felt dust cap
