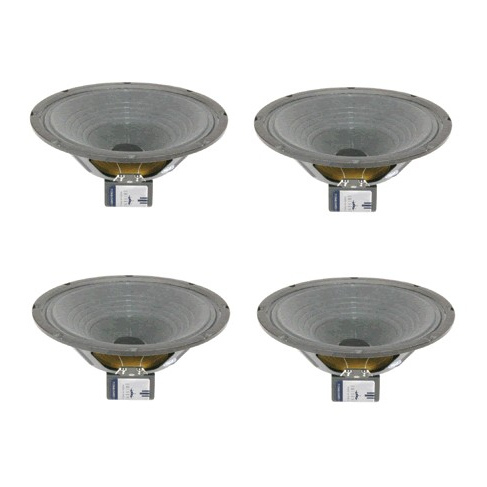

Value Pack of 4 Eminence 1028K Legend 102 8 Ohm 35W Alnico Guitar Speakers

Set of FOUR Eminence Legend 102 8 Ohm Guitar Speakers

The tone that started it all. This long-standing line of guitar speakers didn't get its name by accident. Known for their power, reliability and value, these rock-solid speakers have backed legendary players in legendary venues. Look inside some of the best sounding amps and you may see a Legend that was factory-installed or put in as a replacement. Either way you'll know someone knew what tone they wanted and how to get it. If you want to sound like a legend, play one.

Eminence has been producing this AlNiCo model for some of the world's finest amplifier manufacturers for years. Even more popular than its AlNiCo sister, the 122, this classic lends that warm blues tone that has helped in making many of its users legendary. Like the 12 in. AlNiCo, this speaker was created for lower power, vintage amplifier applications where a thinner tone is desired.

The Eminence Legend 102 guitar speaker is a classic stage fixture. Vintage American tone with moderate, but tight, percussive lows and extended highs. Hard-working under the bright lights.



Specification:

Nominal Basket Diameter 10", 254mm

Nominal Impedance* 8 ohms

Power Rating**

Watts 35W

Music Program N/A

Resonance 95Hz

Usable Frequency Range 100Hz - 5.5kHz

Sensitivity*** 97.4dB

Magnet Weight 6 oz.

Gap Height 0.25", 6.2mm

Voice Coil Diameter 1", 25.4mm

Thiele & Small Parameters:

Resonant Frequency (fs) 95Hz

DC Resistance (Re) 5.8

Coil Inductance (Le) 0.51mH

Mechanical Q (Qms) 17.96

Electromagnetic Q (Qes) 1.61

Total Q (Qts) 1.47

Compliance Equivalent Volume (Vas) 31.5 liters / 1.1 cu.ft.

Peak Diaphragm Displacement Volume (Vd) 72cc

Mechanical Compliance of Suspension (Cms) 0.19mm/N

BL Product (BL) 5.7 T-M

Diaphragm Mass Inc. Airload (MMs) 15 grams

Efficiency Bandwidth Product (EBP) 59

Maximum Linear Excursion (Xmax) 2.1mm

Surface Area of Cone (Sd) 344.9 cm2

Maximum Mechanical Limit (Xlim) N/A

Mounting Information:

Recommended Enclosure Volume

Sealed Acceptable

Vented Acceptable

Driver Volume Displaced 46.7 cu.in. / 0.77 liters

Overall Diameter 10.11", 256.8mm

Baffle Hole Diameter 9.05", 229.9mm

Front Sealing Gasket Fitted as standard

Rear Sealing Gasket N/A

Mounting Holes Diameter 0.22", 5.6mm

Mounting Holes B.C.D. 9.6", 243.8mm

Depth 4.8", 122mm

Net Weight 2.9 lbs, 1.3 kg

Shipping Weight 4 lbs, 1.8 kgs

Materials of Construction:

Coil Construction Copper voice coil

Coil Former Polyimide former

Magnet Composition Alnico magnet

Core Details Non-vented core

Basket Materials Pressed steel basket

Cone Composition Paper Cone

Cone Edge Composition Paper cone edge

Dust Cap Composition Solid composition felt dust cap
