Eminence Replacement Diaphragm for PSD2002 16 Ohm


Product Code: EMID200216D | Brand: Eminence | Model: PSD2002-16DIA
Eminence Replacement Diaphragm for PSD2002 16 Ohm

Eminence Replacement Diaphragm for PSD2002 16 Ohm Eminence Replacement Diaphragm for PSD2002 16 Ohm
£36.37
£30.31 ex VAT
2-3 £35.83 ea.4-7 £35.28 ea.8+ £34.55 ea.
Login to see JAM Club pricing
Not a member? Join Now
8+
LIMITED STOCK
£4.52 DELIVERY to mainland UK.

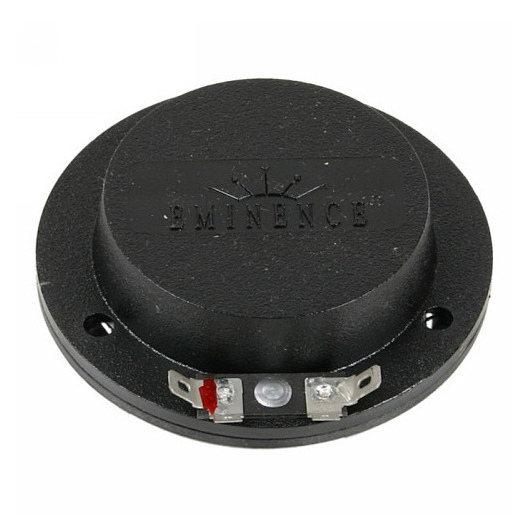

Eminence D200216D Replacement Diaphragm for PSD2002 16ohm

Replacement diaphragm for Eminence PSD2002 and PSD2002S, and numerous OEM-supply compression drivers.

Dimensions:

  • Overall diameter 90mm
  • Voice coil diameter 50.8mm
  • 3off 5mm bolt holes on 75mm PCD
  • Overall height (including voice coil) 25mm


Equivalent part to Yamaha's NBE20610 diaphragm, as used in the 16 ohm JAY20610 compression driver for the S112V, S115V and many other cabinets.

Equivalent part to Carvin 002HR TR1503 diaphragm.



Detailed specifications unavailable, please EMAIL the sales office for additional information.
