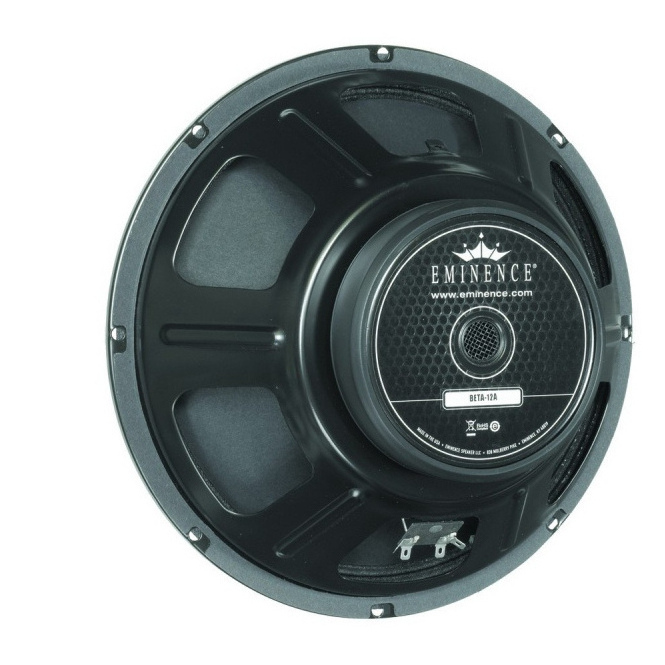

Eminence Beta 12A II - 12 inch 250W 8 Ohm
COOKIES: Our website uses cookies in order to provide a better online experience, this is essential for use of the shopping basket, and to login to our website. We require your consent to use cookies in order to meet relevant regulations. Please CLICK HERE to indicate your consent and continue using our website. We do not use third party tracking cookies on our website, cookies are used for this site's functionality only.
Eminence
Eminence Beta 12A II - 12" 250W 8 Ohm
SPL: 98.0 1W/1m Fs: 47 Hz Xmax: 4.4mm

Product Code: EMIBETA12A | Brand: Eminence | Model: BETA-12A-2
Eminence Beta 12A II - 12 inch 250W 8 Ohm

Eminence Beta 12A II - 12 inch 250W 8 Ohm Eminence Beta 12A II - 12 inch 250W 8 Ohm Eminence Beta 12A II - 12 inch 250W 8 Ohm Eminence Beta 12A II - 12 inch 250W 8 Ohm
£103.46
£86.22 ex VAT
2-3 £101.91 ea.4-7 £100.36 ea.8+ £98.29 ea.
Login to see JAM Club pricing
Not a member? Join Now
£2.16 DELIVERY to mainland UK.
Eminence Beta 12 - 8 OHMS 250W 12" Driver 8 ohm

Recommended for professional audio and bass guitar applications as a woofer in a vented enclosure. Also works well for PA in a sealed or bandpass enclosure.

Technical specifications


  • Nominal Diameter: 305 mm (12 in)
  • Overall Diameter: 305.6 mm (12.03 in)
  • Bolt Circle Diameter: 294.4 mm (11.59 in)
  • Mounting Holes Diameter: 6.4 mm (0.25 in)
  • Baffle Cutout Diameter: 281.2 mm (11.07 in)
  • Overall Depth: 139.7 mm (5.5 in)
  • Front Sealing Gasket: Yes
  • Rear Sealing Gasket: Yes
  • Impedance: 8 ohm
  • AES Power: 250 W
  • Program Power: 500 W
  • Sensitivity: 98 dB
  • Voice Coil Diameter: 51 mm (2 in)
  • Voice Coil Material: Copper voice coil
  • Voice Coil Former: Polyimide former
  • Magnetic Gap Depth: 7.9 mm (0.312 in)
  • Cone Material: Paper cone
  • Dust Cap Material: Solid composition paper dust cap
  • Surround Material: Cloth cone edge
  • Chassis Material: Pressed steel basket
  • Magnet Material: Ferrite magnet
  • Magnet Weight: 38 oz
  • Core Details: Vented and extended core
  • Sealed Enclosure Size: 25.5-35.4 L
  • Vented Enclosure Size: 36.8-139 L


Thiele and small parameters


  • Resonance (Fs) - 47 Hz
  • DC Resistance (Re) - 5 Ohm
  • Voice Coil Inductance (Le) - 0.64 mH
  • Mechanical Q (Qms) - 6
  • Electrical Q (Qes) - 0.5
  • Total Q (Qts) - 0.46
  • Compliance Equivalent Volume (Vas) - 120.1 L
  • Peak Displacement Volume (Vd) - 237 cm3
  • Compliance (Cms) - 0.29 mm/N
  • Force Factor (BL) - 10.8 Tm
  • Moving Mass - System (Mms) - 40 g
  • Efficiency Bandwidth Product (EBP) - 94
  • Maximum Linear Excursion (Xmax) - 4.4 mm
  • Diaphragm Area (Sd) - 538.9 cm2
  • Maximum Mechanical Excursion (Xmech) - 11 mm

Shipping Information


  • Net Weight: 3.4 kg (7.5 lbs)
  • Shipping Weight: 4.4 kg (9.7 lbs)

Eminence Beta 12 8 Ohm Twin Pack
Pack size: 2 units @ £203.82 incl VAT - Equivalent price: £101.91 incl VAT per item

Eminence Beta 12 8 Ohm Twin Pack - currently in stock5+ IN STOCK
Product Code: EMIBETA12A_2PK

Eminence Beta 12 8 Ohm Four Pack
Pack size: 4 units @ £401.44 incl VAT - Equivalent price: £100.36 incl VAT per item

Eminence Beta 12 8 Ohm Four Pack - currently in stock5+ IN STOCK
Product Code: EMIBETA12A_4PK
