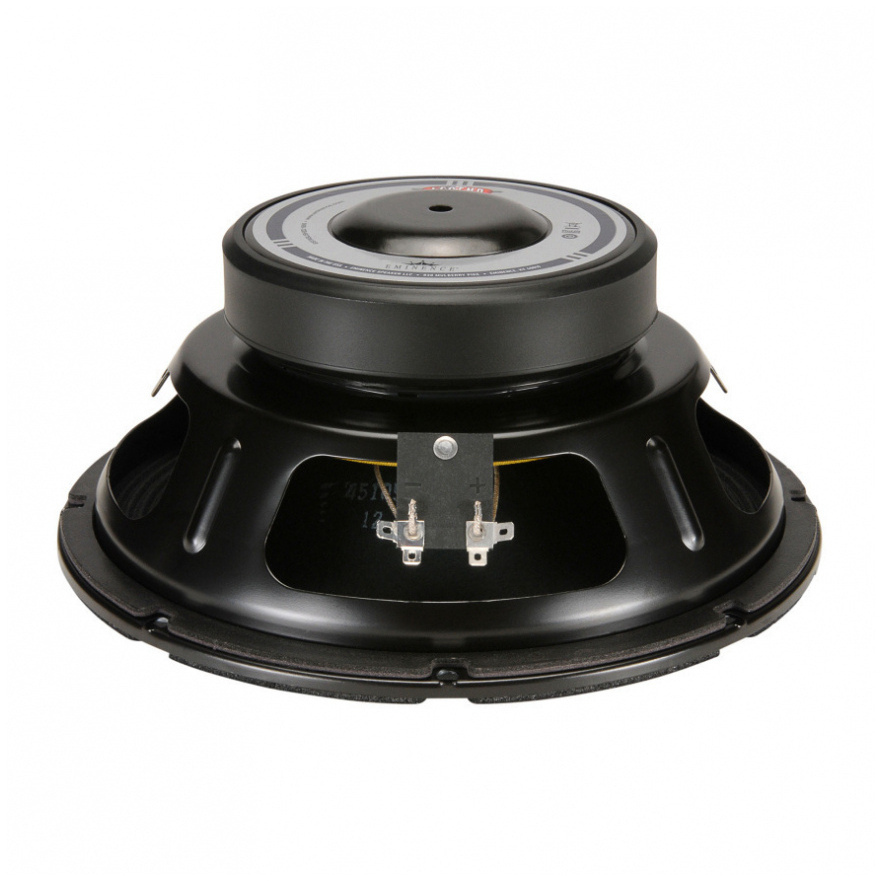

Eminence Beta 10B - 10 inch 250W 16 Ohm
COOKIES: Our website uses cookies in order to provide a better online experience, this is essential for use of the shopping basket, and to login to our website. We require your consent to use cookies in order to meet relevant regulations. Please CLICK HERE to indicate your consent and continue using our website. We do not use third party tracking cookies on our website, cookies are used for this site's functionality only.
Eminence
Eminence Beta 10B - 10" 250W 16 Ohm
SPL: 96.2 1W/1m Fs: 53 Hz Xmax: 3.0mm

Product Code: EMIBETA10B | Brand: Eminence | Model: BETA-10B
Eminence Beta 10B - 10 inch 250W 16 Ohm

Eminence Beta 10B - 10 inch 250W 16 Ohm Eminence Beta 10B - 10 inch 250W 16 Ohm Eminence Beta 10B - 10 inch 250W 16 Ohm Eminence Beta 10B - 10 inch 250W 16 Ohm
£85.92
£71.60 ex VAT
2-3 £84.63 ea.4-7 £83.34 ea.8+ £81.62 ea.
Login to see JAM Club pricing
Not a member? Join Now
£4.53 DELIVERY to mainland UK.
Eminence Beta 10 - 16 ohm 250W 10" Driver

Recommended for professional audio, bass guitar, mid-bass or floor monitor applications in sealed enclosures. Also works well as a mid-bass or woofer in vented enclosures.


Specification:

  • Nominal Basket Diameter 10", 254mm
  • Nominal Impedance* 16 ohms
  • Power Rating: Watts 250W Music Program 500W
  • Resonance 53Hz
  • Usable Frequency Range 51Hz - 3.8kHz
  • Sensitivity*** 96.2dB
  • Magnet Weight 34 oz.
  • Gap Height 0.31", 7.92mm
  • Voice Coil Diameter 2", 50.8mm


Thiele & Small Parameters:

  • Resonant Frequency (fs) 53Hz
  • DC Resistance (Re) 13 Ohms
  • Coil Inductance (Le) 0.67mH
  • Mechanical Q (Qms) 8.14
  • Electromagnetic Q (Qes) 0.52
  • Total Q (Qts) 0.49
  • Compliance Equivalent Volume (Vas) 60.1 liters / 2.1 cu.ft.
  • Peak Diaphragm Displacement Volume (Vd) 102cc
  • Mechanical Compliance of Suspension (Cms) 0.36mm/N
  • BL Product (BL) 9.6 T-M
  • Diaphragm Mass Inc. Airload (MMs) 25 grams
  • Efficiency Bandwidth Product (EBP) 103
  • Maximum Linear Excursion (Xmax) 3mm
  • Surface Area of Cone (Sd) 344.9 cm2
  • Maximum Mechanical Limit (Xlim) 8.6mm


Mounting Information:

  • Recommended Enclosure Volume Sealed 8.5-14.2 liters / 0.3-0.5 cu.ft. Vented 19.8-70.8 liters / 0.7-2.5 cu.ft.
  • Driver Volume Displaced 69.1 cu.in. / 1.13 liters
  • Overall Diameter 10.11", 256.8mm
  • Baffle Hole Diameter 9.13", 231.8mm
  • Front Sealing Gasket Fitted as standard
  • Rear Sealing Gasket Fitted as standard
  • Mounting Holes Diameter 0.23", 5.7mm
  • Mounting Holes B.C.D. 9.6", 243.8mm
  • Depth 3.98", 101mm
  • Net Weight 6.8 lbs, 3.1 kg
  • Shipping Weight 7.8 lbs, 3.6 kgs


Materials of Construction:

  • Coil Construction Aluminium voice coil
  • Coil Former Polyimide former
  • Magnet Composition Ferrite magnet
  • Core Details Vented core
  • Basket Materials Pressed steel basket
  • Cone Composition Paper Cone
  • Cone Edge Composition Cloth cone edge
  • Dust Cap Composition Solid composition paper dust cap

Eminence Beta 10 - 16 Ohm Twin Pack
Pack size: 2 units @ £169.26 incl VAT - Equivalent price: £84.63 incl VAT per item

Eminence Beta 10 - 16 ohm Twin Pack - currently in stock5+ IN STOCK
Product Code: EMIBETA10B_2PK

Eminence Beta 10 - 16 Ohm Four Pack
Pack size: 4 units @ £333.37 incl VAT - Equivalent price: £83.34 incl VAT per item

Eminence Beta 10 - 16 ohm Four Pack - currently in stock3 IN STOCK
Product Code: EMIBETA10B_4PK
