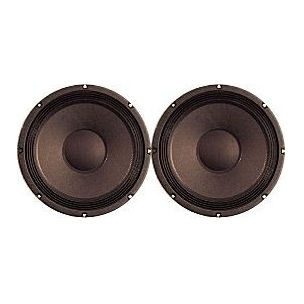

Eminence Alpha 10 Twin Pack
COOKIES: Our website uses cookies in order to provide a better online experience, this is essential for use of the shopping basket, and to login to our website. We require your consent to use cookies in order to meet relevant regulations. Please CLICK HERE to indicate your consent and continue using our website. We do not use third party tracking cookies on our website, cookies are used for this site's functionality only.
Eminence
Eminence Alpha 10 Twin Pack
150W 10" Driver 8 ohm

Product Code: EMIALPHA10A_2PK | Brand: Eminence | Model:
Eminence Alpha 10 Twin Pack
£163.70
£136.42 ex VAT
Login to see JAM Club pricing
Not a member? Join Now
5+
Available
FREE DELIVERY for mainland UK
Eminence Alpha 10 - 150W 10" Driver 8 ohm

Ideal as a woofer for small two way systems, and keyboard and guitar combos.

Specification:

  • Nominal Basket Diameter 10", 254mm
  • Nominal Impedance* 8 ohms
  • Power Rating - Watts: 150W, Music Program: 300W
  • Resonance 50Hz
  • Usable Frequency Range 57Hz - 4.5kHz
  • Sensitivity*** 95.6dB
  • Magnet Weight 20 oz.
  • Gap Height 0.25", 6.35mm
  • Voice Coil Diameter 1.5", 38.1mm


Thiele & Small Parameters:

  • Resonant Frequency (fs) 50Hz
  • DC Resistance (Re) 5.31
  • Coil Inductance (Le) 0.66mH
  • Mechanical Q (Qms) 5.21
  • Electromagnetic Q (Qes) 0.66
  • Total Q (Qts) 0.59
  • Compliance Equivalent Volume (Vas) 82.2 liters / 2.9 cu.ft.
  • Peak Diaphragm Displacement Volume (Vd) 114cc
  • Mechanical Compliance of Suspension (Cms) 0.46mm/N
  • BL Product (BL) 7.5 T-M
  • Diaphragm Mass Inc. Airload (MMs) 22 grams
  • Efficiency Bandwidth Product (EBP) 76
  • Maximum Linear Excursion (Xmax) 3.2mm
  • Surface Area of Cone (Sd) 355.4 cm2
  • Maximum Mechanical Limit (Xlim) 9.1mm


Mounting Information:

  • Recommended Enclosure Volume: Sealed 8.5-11.3 liters / 0.3-0.4 cu.ft., Vented 28.3-53.8 liters / 1-1.9 cu.ft.
  • Driver Volume Displaced 58.1 cu.in. / 0.95 liters
  • Overall Diameter 10.11", 256.8mm
  • Baffle Hole Diameter 9.13", 231.8mm
  • Front Sealing Gasket Fitted as standard
  • Rear Sealing Gasket Fitted as standard
  • Mounting Holes Diameter 0.23", 5.7mm
  • Mounting Holes B.C.D. 9.6", 243.8mm
  • Depth 3.9", 99mm
  • Net Weight 4.5 lbs, 2 kg
  • Shipping Weight 5.6 lbs, 2.5 kgs


Materials of Construction:

  • Coil Construction Copper voice coil
  • Coil Former Polyimide former
  • Magnet Composition Ferrite magnet
  • Core Details Vented and extended core
  • Basket Materials Pressed steel basket
  • Cone Composition Paper Cone
  • Cone Edge Composition Cloth cone edge
  • Dust Cap Composition Solid composition paper dust cap


Detailed specifications unavailable, please EMAIL the sales office for additional information.

Eminence Alpha 10 Twin Pack
Pack size: 2 units @ £163.70 incl VAT - Equivalent price: £81.85 incl VAT per item

Eminence Alpha 10 Twin Pack - currently in stock5+ IN STOCK
Product Code: EMIALPHA10A_2PK

Eminence Alpha 10 Four Pack
Pack size: 4 units @ £322.43 incl VAT - Equivalent price: £80.61 incl VAT per item

Eminence Alpha 10 Four Pack - currently in stock3 IN STOCK
Product Code: EMIALPHA10A_4PK
Other Eminence products similar to Eminence Alpha 10 Twin Pack:
Eminence Kappa Pro 10 LF A - 10" 600W 8 Ohm

£158.51 inc VAT
(£132.09 ex VAT)

Eminence Delta 10 - 10" 350W 8 Ohm

£100.22 inc VAT
(£83.52 ex VAT)

Eminence KappaLite 3010LF - 10" 450W 8 Ohm

£235.80 inc VAT
(£196.50 ex VAT)

Eminence Beta 10 - 10" 250W 8 Ohm

£85.10 inc VAT
(£70.92 ex VAT)

UK & ROI
Delivery Info for Eminence Alpha 10 Twin Pack to locations within the United Kingdom and Ireland
EUROPE
Delivery Info for Eminence Alpha 10 Twin Pack to locations in Europe
Eminence Alpha 10 Twin Pack is a package consisting of the following items:
 2 x Eminence Alpha 10 - 10" 150W 8 Ohm
SPL: 95.6 1W/1m Fs: 50 Hz Xmax: 3.2mm

15 IN STOCK
SEARCH results for other drivers with similar T-S Parameters to Eminence Alpha 10 - 150W 10" Driver 8 ohm
