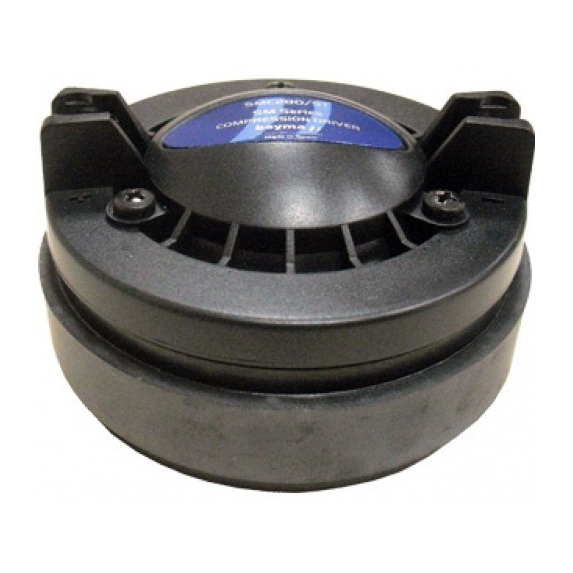

Beyma SMC280S/T 8 Ohm 50W 1 inch Bolt On Compression Driver
COOKIES: Our website uses cookies in order to provide a better online experience, this is essential for use of the shopping basket, and to login to our website. We require your consent to use cookies in order to meet relevant regulations. Please CLICK HERE to indicate your consent and continue using our website. We do not use third party tracking cookies on our website, cookies are used for this site's functionality only.
Beyma
Beyma SMC280S/T 8 Ohm 50W 1" Bolt On Compression Driver


Product Code: BMASMC280ST | Brand: Beyma
Beyma SMC280S/T 8 Ohm 50W 1 inch Bolt On Compression Driver

Beyma SMC280S/T 8 Ohm 50W 1 inch Bolt On Compression Driver Beyma SMC280S/T 8 Ohm 50W 1 inch Bolt On Compression Driver Beyma SMC280S/T 8 Ohm 50W 1 inch Bolt On Compression Driver
£50.60
£42.17 ex VAT
2-3 £49.84 ea.4-7 £49.09 ea.8+ £48.07 ea.
Login to see JAM Club pricing
Not a member? Join Now
Usually available in <br>3-5 weeks
Usually available in
3-5 weeks
£8.37 DELIVERY to mainland UK.
Beyma SMC280S/T 8 Ohm 50W 1" Bolt On Compression Driver

This 1" compression driver features a lightweight mylar diaphragm that provides an excellent high frequency response with low harmonic distortion. Other key features of this model are its excellent sensitivity (105 dB) and its high power handling (50 w AES above 1.5 kHz). The coil-diaphragm assembly is easily field-replaced without soldering.


Technical Specifications:

  • Throat diameter 25 mm. 1 in.
  • Rated impedance 8 ohms.
  • Minimum impedance 5.2 ohms. @ 4 kHz
  • D.C. Resistance 5.6 ohms.
  • Power capacity 50 w AES above 1.5 kHz
  • Program Power 100 w above 1.5 kHz
  • Sensitivity 105 dB 1w @ 1m coupled to TD-245 horn
  • Frequency range 0.8 - 18 kHz
  • Recom. crossover 1.5 kHz or higher, 12 dB/oct. min.
  • Voice coil diameter 44.4 mm. 1.75 in.
  • Magnetic assembly weight 1.2 kg. 2.64 lb.
  • Flux density 1.65 T.
  • BL Factor 8.5 N/A
