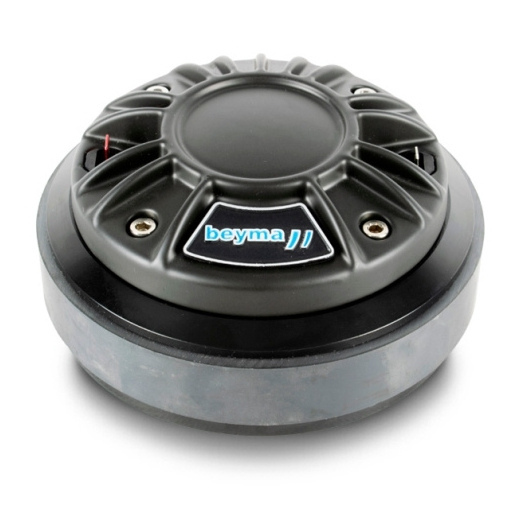

Beyma CD-171FE/PK 1" Compression Driver 8 ohm
Next generation high performance 1” (25,4 mm) exit compression driver
Deplocex® Patent Pending Technology for improved thermal dissipation, low power compression losses and high power handling
1,75” (44,4 mm) Copper Clad Aluminium voice coil with Kapton former
160 W program power above 1,4 kHz
Sensitivity: 109 dB (1W / 1m)
Exclusive High Temperature Polymer dome and surround design optimized with F.E.M for linear and extended response with minimized resonances
Copper shorting cap for reduced distortion, linear inductance and increased output
F.E.M. optimized ceramic magnetic circuit
Aluminium cover
Technical specifications
- Throat Diameter: 1 Inches (25.4 )
- Overall Diameter: 120 mm (4.72 )
- Overall Depth: 59 mm (2.32 )
- Impedance: 8 ohm
- Minimum Impedance: 6.1 ohm
- AES Power: 80 W
- Program Power: 160 W
- Power: 80 W
- Sensitivity: 109 dB

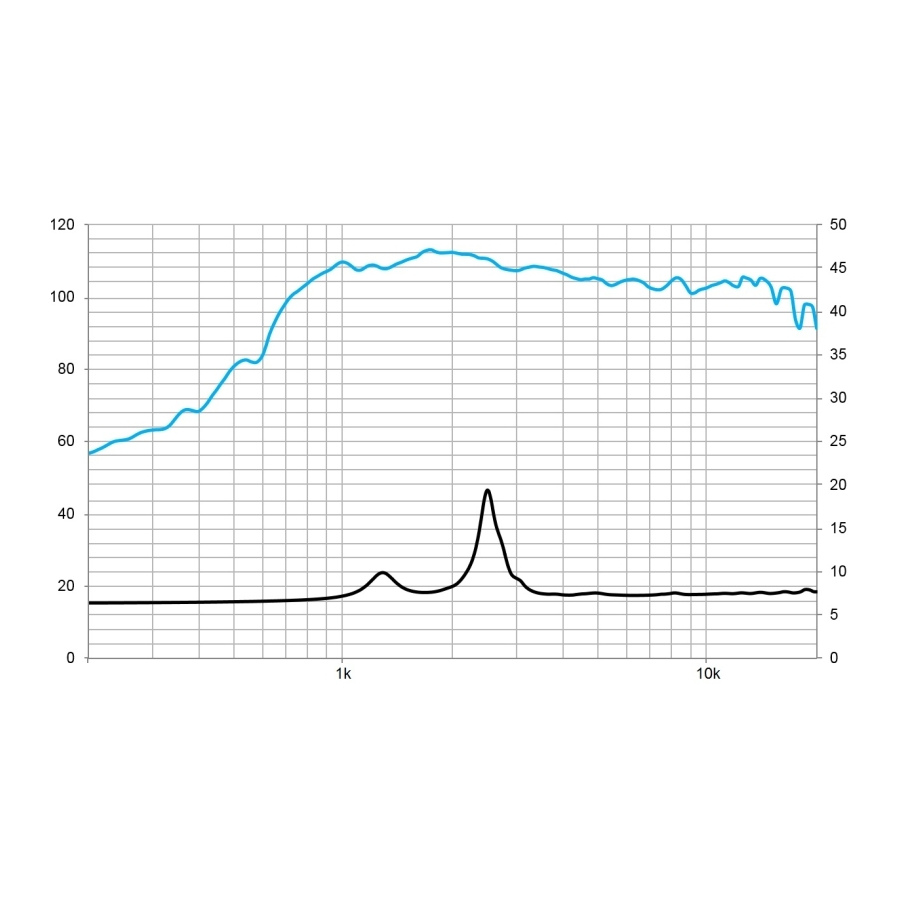

- Frequency Range: 800-20000 Hz
- Voice Coil Diameter: 44.4 mm (1.75 )
- Diaphragm Material: High Temperature Polymer
- Magnet Material: Ferrite
- Minimum Crossover Frequency: 1.4 kHz
Thiele and Small parameters: Need some help? Read our quick guide to TS Params.
- DC Resistance (Re) - 4.1 Ohm
- Force Factor (BL) - 5.4 Tm
Shipping Information
- Net Weight: 2.3 kg
- Shipping Weight: 2.4 kg
