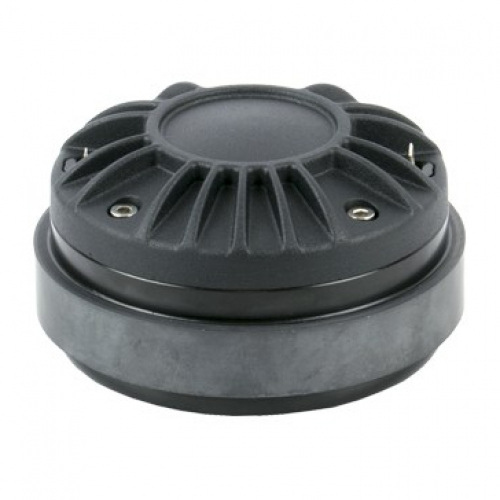

Beyma CD11Fe 70W 8 Ohm 1" Compression Driver


Product Code: BMACD11FE | Brand: Beyma
Beyma CD11Fe 70W 8 Ohm 1 inch Compression Driver

Beyma CD11Fe 70W 8 Ohm 1 inch Compression Driver Beyma CD11Fe 70W 8 Ohm 1 inch Compression Driver
£67.70
£56.42 ex VAT
2-3 £66.69 ea.4-7 £65.67 ea.8+ £64.32 ea.
Login to see JAM Club pricing
Not a member? Join Now
Usually available in <br>3-5 weeks
Usually available in
3-5 weeks
£7.40 DELIVERY to mainland UK.
Beyma CD11Fe 70W 8 Ohm 1" Compression Driver



Click here to request product information for this item
TECHNICAL SPECIFICATIONS:

  • Throat diameter 25.4 mm 1 in
  • LNominal impedance 8 Ohm
  • Minimum impedance 5.2 ohm
  • Re 4.4 ohm
  • Power capacity 70 W AES above 1.2 kHz
  • Program power 140 W above 1.2 kHz

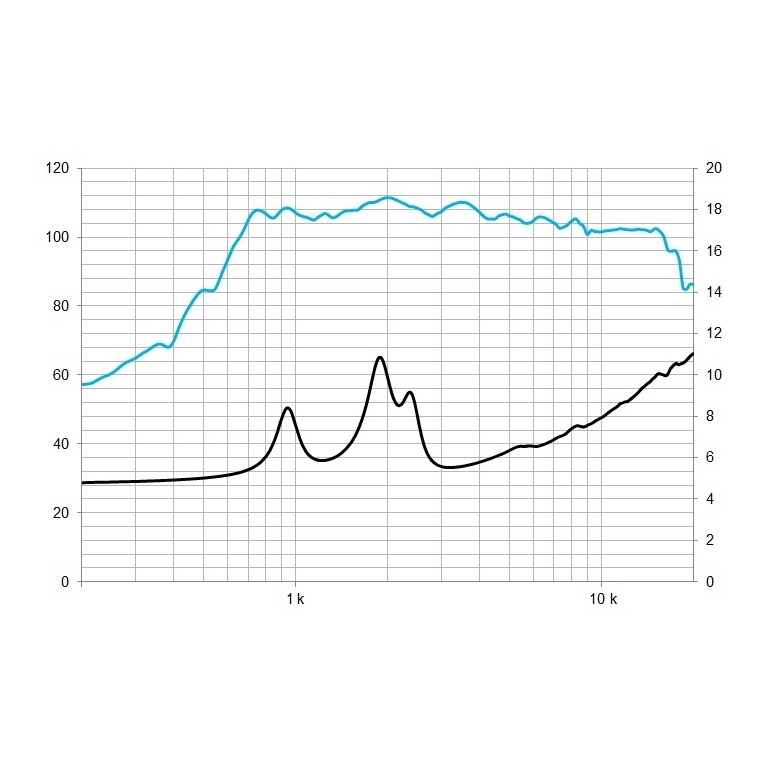

  • Sensitivity 109 dB 1W / 1m @ ZN coupled to TD-164
  • Frequency range 700-19000 Hz
  • Recom. crossover frequency 1.2 kHz or higher (12dB/oct min slope)
  • Voice coil diameter 44.4 mm 1.75 in
  • Flux density 1.5 T
  • Diaphragm material PM4


CONSTRUCTIVE DETAILS:

  • External diameter 110 mm 4.3 in Depth 59 mm 2.3 in
  • Mounting Three M5 threaded holes. 120 deg apart on 57 mm (2.24 in) diameter circle.
  • Two M5 threaded holes. 180 deg apart on 76.2 mm (3 in) diameter circle.
  • Net weight 1.8 kg 4 lb
  • Total weight 1.9 kg 4.2 lb
  • Magnet Ferrite
