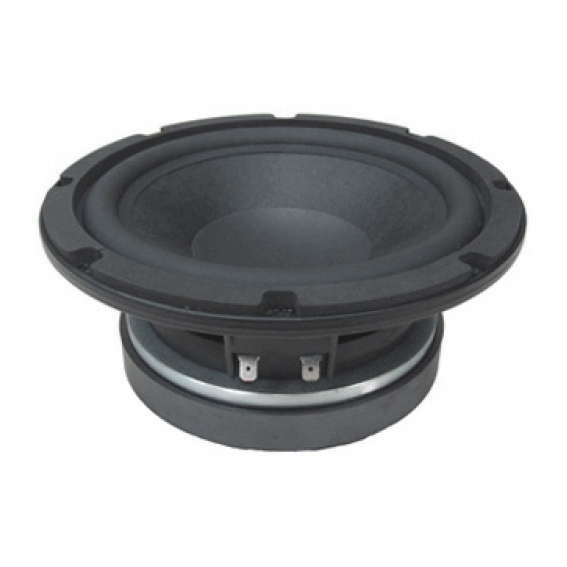

Beyma 8P300Fe/N - 8" 300W 8 Ohm
Features
- 600 W program power
- Sensitivity: 94 dB
- Extended controlled displacement: Xmax ± 6 mm
- Extended mechanical displacement capability: Xdamage ± 24 mm
- Designed with MMSS technology for high control, symmetry and linearity
- Shorting cup for low harmonic distortion
- CONEX spider
- Waterproof carbon fiber loaded paper cone with SantopreneTM surround
Technical Specifications
- Nominal diameter - 200 mm 8 in
- Rated impedance - 8 Ohm
- Minimum impedance - 6.7 Ohm
- Power capacity* - 300 WAES
- Program power - 600 W
- Sensitivity - 94 dB 1W / 1m @ ZN
- Frequency range - 55 - 8000 Hz
- Voice coil diameter - 63.5 mm 2.5 in
- Bl factor - 11.6 N/A
- Moving mass - 0.025 kg
- Voice coil length - 15 mm
- Air gap height - 7 mm
- Xdamage (peak to peak) - 24 mm
Thiele Small Parameters
- Resonant frequency, fs - 53 Hz
- D.C. Voice coil resistance, Re - 5.2 Ohm
- Mechanical Quality Factor, Qms - 14.3
- Electrical Quality Factor, Qes - 0.32
- Total Quality Factor, Qts - 0.31
- Equivalent Air Volume to Cms, Vas - 24.8 l
- Mechanical Compliance, Cms - 362 %uFFFD!mu!m / N
- Mechanical Resistance, Rms - 0.58 kg / s
- Efficiency, ç0 - 1.1 %
- Effective Surface Area, Sd - 0.022 m2
- Maximum Displacement, Xmax *** - 6 mm
- Displacement Volume, Vd - 132 cm3
- Voice Coil Inductance, Le @ 1 kHz - 0.4 mH
Mounting Information
- Overall diameter - 211.5 mm 8.33 in
- Bolt circle diameter - 198.3 mm 7.81 in
- Baffle cutout diameter: -
- - Front mount - 179.5 mm 7.07 in
- Depth - 97.5 mm 3.84 in
- Net weight - 4.03 kg 8.88 lb
- Shipping weight - 4.23 kg 9.32 lb
