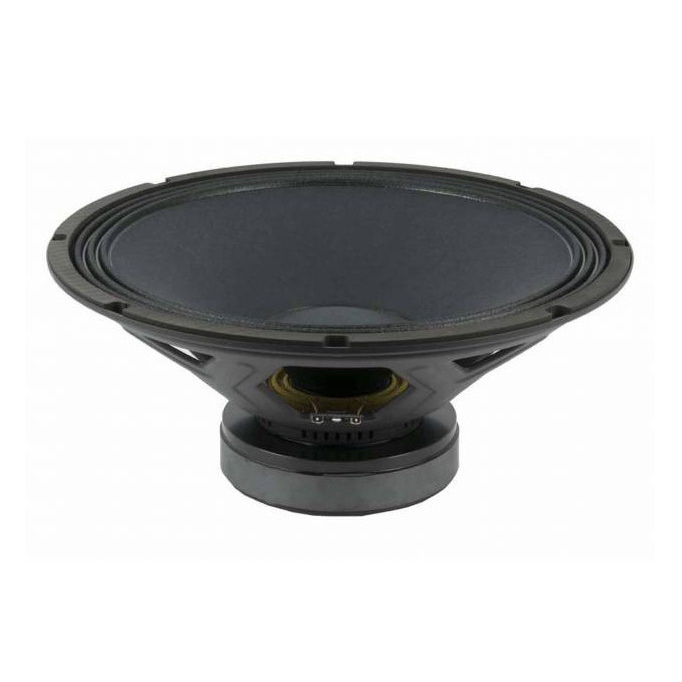

Beyma 15MCS500 - 15" 500W 8 Ohm
KEY FEATURES:
- High power handling: 1000 W program power
- 2.5" copper wire voice coil
- Malt Cross Cooling System
- Low power compression losses
- High sensitivity: 97.5 dB (1W / 1m)
- Optimized pressed steel frame
- FEA optimized magnetic circuit
- Waterproof cone treatment for both sides of the cone
- Optimized for 2 or 3 way PA systems and line array applications
TECHNICAL SPECIFICATIONS:
THIELE SMALL PARAMETERS:
CONSTRUCTIVE DETAILS:
- Nominal diameter 380 mm 15 in
- Nominal impedance 8 Ohm
- Minimum impedance 7.2 ohm
- Power capacity 500 W AES
- Program power 1000 W
- Sensitivity 97.5 dB 1 W/1 m @ ZN

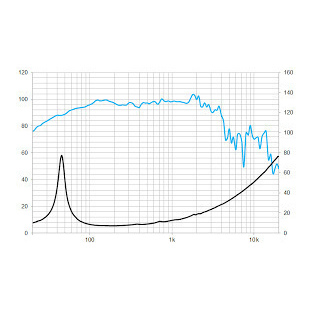

- Frequency range 50-4000 Hz
- Voice coil diameter 63.5 mm 2.5 in
- BL factor 18 N/A
- Moving mass 0.098 kg
- Winding length 19.5 mm
- Air gap height 9.5 mm
- Xdamage pp 40 mm
THIELE SMALL PARAMETERS:
- Fs 46 Hz
- Re 5.6 ohm
- Qms 7.8
- Qes 0.5
- Qts 0.48
- Vas 134 l
- Cms 122 %uFFFD!mu!m / N
- Rms 3.6 kg/s
- Efficiency % 2.5
- Sd 0.088 m²
- Xmax 8 mm
- Vd 704 cm³
- Le @1 kHz 1.1 mH
CONSTRUCTIVE DETAILS:
- Depth 172 mm 6.77 in
- Net weight 6.2 kg 13.67 lb
- Total weight 7.2 kg 15.87 lb
- Magnet Ferrite
