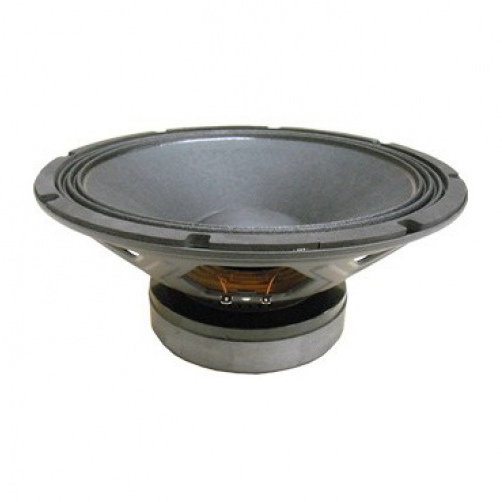

Beyma 12MCS500 - 12" 500W 8 Ohm
Click here to request product information for this item
This is NOT a stock item, we can usually order this in and have stock within 30-34 working days. If you require this item urgently, please contact a member of staff to confirm availability.
TECHNICAL SPECIFICATIONS:
THIELE SMALL PARAMETERS:
CONSTRUCTIVE DETAILS:
- Nominal diameter 300 mm 12 in
- Nominal impedance 8 ohm
- Minimum impedance 7.1 ohm
- Power capacity 500 W AES
- Program power 1000 W
- Sensitivity 97 dB 1 W @ 1 m @ ZN
- Frequency range 65-5000 Hz
- Voice coil diameter 63.5 mm 2.5 in
- BL factor 17.2 N / A
- Moving mass 0.062 kg
- Winding length 19.5 mm
- Air gap height 10 mm
- Xdamage pp 40 mm
THIELE SMALL PARAMETERS:
- Fs 62 Hz
- Re 5.5 ohm
- Qms 5.9
- Qes 0.46
- Qts 0.43
- Vas 44 l
- Cms 103 µm / N
- Rms 4.1 kg / s
- Efficiency % 2.3
- Sd 0.055m²
- Xmax 8 mm
- Vd 440 cm³
- Le @1 kHz 1mH
CONSTRUCTIVE DETAILS:
- Depth 140 mm 5.51 in
- Net weight 6 kg 13.3 lb
- Total weight 6.7 kg 14.77 lb
- Magnet Ferrite
