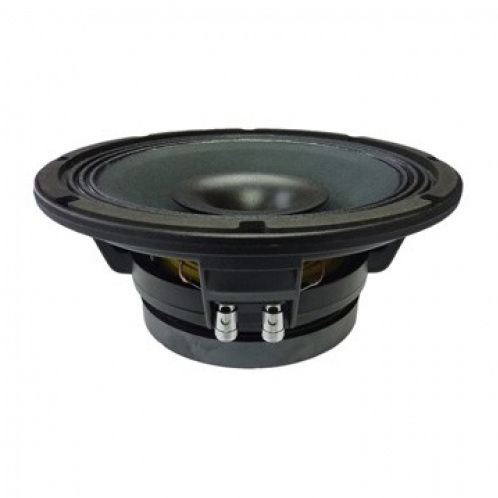

Beyma 10CX300Fe - 10 inch 300W 8/16 Ohm
COOKIES: Our website uses cookies in order to provide a better online experience, this is essential for use of the shopping basket, and to login to our website. We require your consent to use cookies in order to meet relevant regulations. Please CLICK HERE to indicate your consent and continue using our website. We do not use third party tracking cookies on our website, cookies are used for this site's functionality only.
Beyma
Beyma 10CX300Fe - 10" 300W 8/16 Ohm
SPL: 96.5dB Fs: 48Hz Xmax: 6.8mm

Product Code: BMA10CX300FE | Brand: Beyma
Beyma 10CX300Fe - 10 inch 300W 8/16 Ohm
£252.31
£210.26 ex VAT
2-3 £248.53 ea.4-7 £244.74 ea.8+ £239.70 ea.
Login to see JAM Club pricing
Not a member? Join Now
Usually available in <br>3-5 weeks
Usually available in
3-5 weeks
FREE DELIVERY for mainland UK
Beyma 10CX300Fe - 10" 300W 8/16 Ohm

TECHNICAL SPECIFICATIONS:

  • Nominal diameter 250 mm 10 in
  • Nominal impedance LF/HF 8/16 ohm
  • Minimum impedance LF/HF 5.7 / 10.1 ohm
  • Power capacity LF/HF 300/50 W AES
  • Program power LF/HF 600/100 W
  • Sensitivity LF/HF 96.5/104 dB @ 1w @ 1m
  • Frequency range 50-20000 Hz
  • Recom. crossover frequency 2 kHz or higher (12dB/oct min slope)
  • Voice coil diameter LF/HF 62/44 mm - 2.5/1.75 in
  • BL factor 11.65 N/A
  • Moving mass 0.035 kg
  • Winding length 17.5 mm
  • Xdamage pp 30 mm
  • LF Recone kit ref. 5M10CX3FE8
  • HF diaphragm ref. 5MCD106

THIELE SMALL PARAMETERS:

  • Fs 48 Hz
  • Re 5.2 ohm
  • Qms 5.3
  • Qes 0.41
  • Qts 0.38
  • Vas 62.7 l
  • Cms 307 µm / N
  • Rms 2.05 kg/s
  • Efficiency % 1.65
  • Sd 0.038 m²
  • Xmax 6.75 mm
  • Vd 256 cm³
  • Le @1 kHz 0.4 mH


CONSTRUCTIVE DETAILS:

  • Net weight 5.1 kg 11.22 lb
  • Total weight 5.5 kg 12.1 lb
  • Magnet Ferrite
