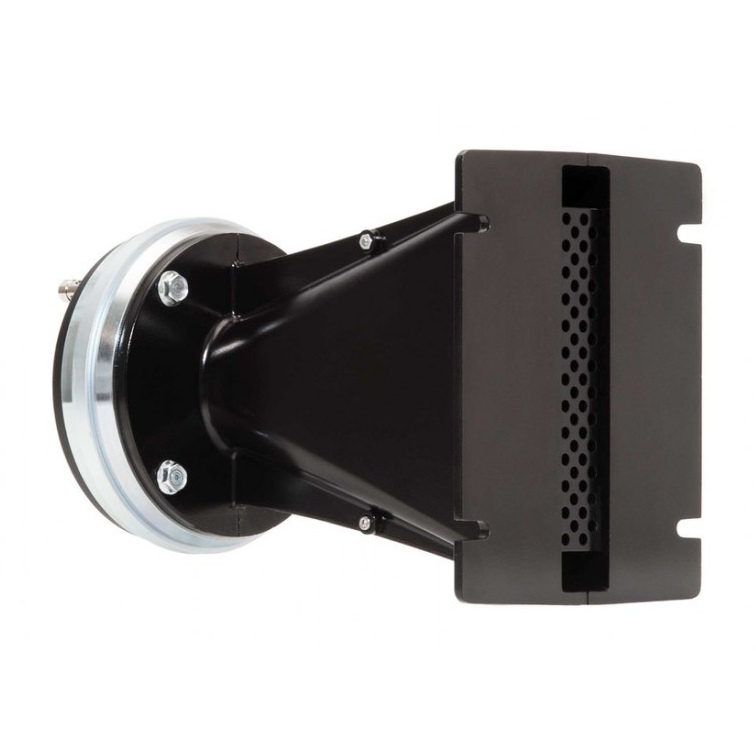

B&C WGX980TN Line Array Driver With Wave Guide
COOKIES: Our website uses cookies in order to provide a better online experience, this is essential for use of the shopping basket, and to login to our website. We require your consent to use cookies in order to meet relevant regulations. Please CLICK HERE to indicate your consent and continue using our website. We do not use third party tracking cookies on our website, cookies are used for this site's functionality only.
B & C
B&C WGX980TN Line Array Driver With Wave Guide


Product Code: BACWGX980TN | Brand: B & C | Model: WGX980TN
B&C WGX980TN Line Array Driver With Wave Guide

B&C WGX980TN Line Array Driver With Wave Guide B&C WGX980TN Line Array Driver With Wave Guide B&C WGX980TN Line Array Driver With Wave Guide B&C WGX980TN Line Array Driver With Wave Guide
£396.49
£330.41 ex VAT
2-3 £384.60 ea.4-7 £376.67 ea.8+ £368.74 ea.
Login to see JAM Club pricing
Not a member? Join Now
Usually available in <br>3-5 months
Usually available in
3-5 months
FREE DELIVERY for mainland UK
B&C WGX980TN Line Array Driver With Wave Guide



Click here to request product information for this item
Specifications:

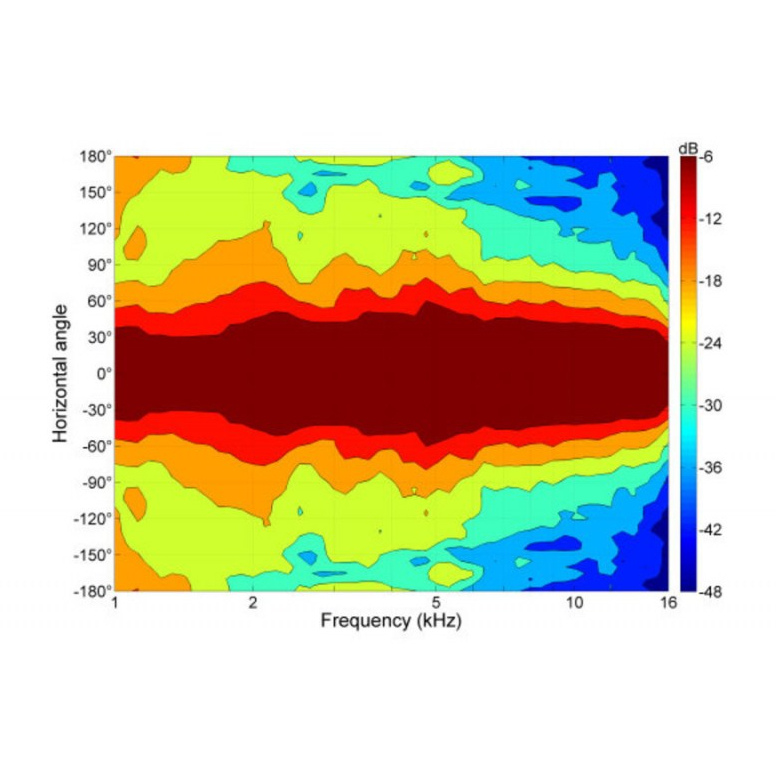

  • Horizontal coverage 120 degrees Max
  • Active radiating factor 93.7 %
  • Recommended crossover 0.8 kHz
  • Waveguide material Cast Aluminium
  • Nominal impedance 8 ohms
  • Minimum impedance 8.0 ohms
  • Nominal power handling 110 W
  • Continuous power handling 220 W
  • Sensitivity (1W/1m) 108.5 dB

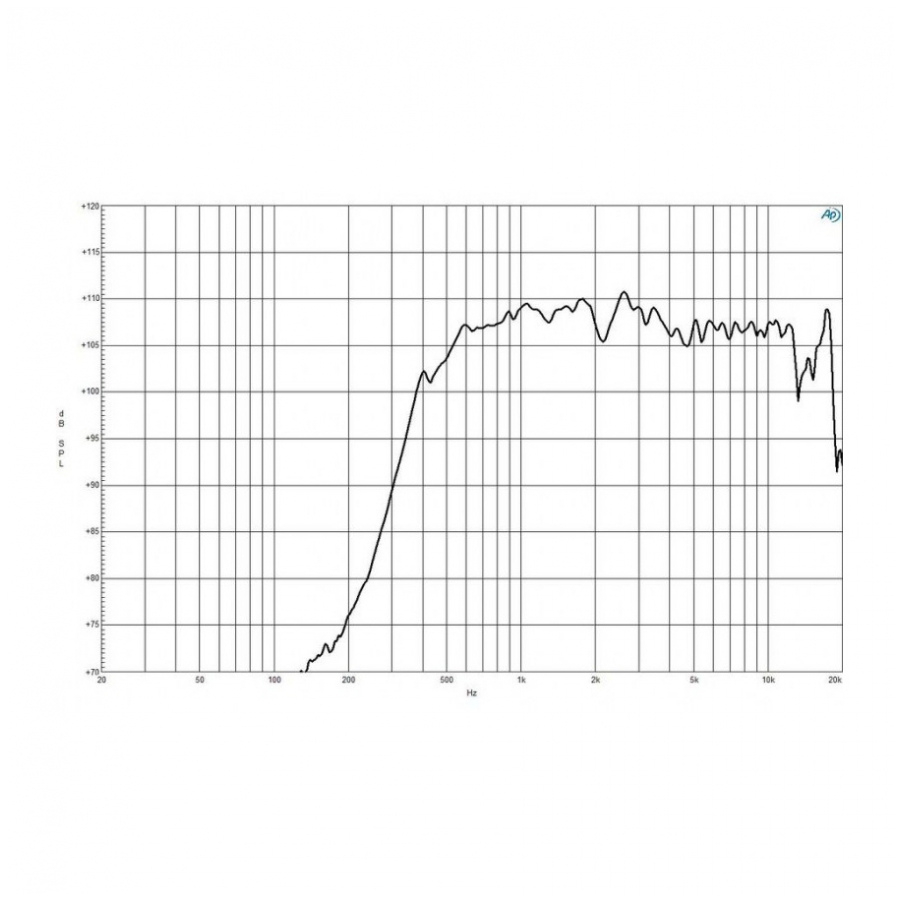

  • Frequency range 1 - 18 kHz
  • Voice coil diameter 75 mm (3.0 in)
  • Winding material CCAW
  • Diaphragm material Titanium
  • Flux density 2.05 T
  • Magnet material Neodymium Ring


Mounting And Shipping Info:

  • Waveguide baffle cutout 153x25 mm (6x1 in)
  • Driver diameter 131 mm (5.16 in)
  • Dimensions 163x130x235 mm (6.4x5.1x9.3 in)
  • Net weight 3.3 kg (7.28 lb)
  • Shipping units 1
  • Shipping weight 3.4 kg (7.5 lb)
  • Shipping box 245x140x175 mm (9.6x5.5x6.9 in)
