B & C : B & C WGX800 :: £368.27

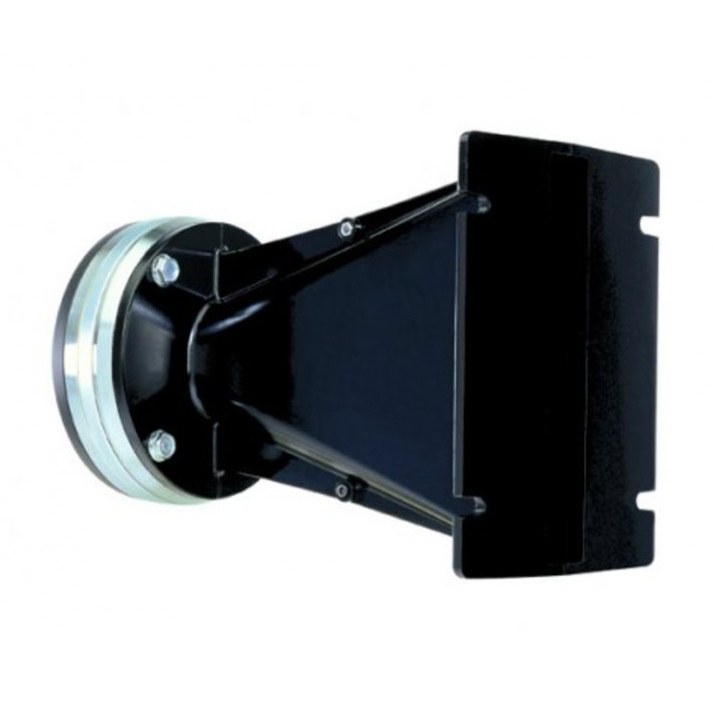

B&C WGX800 Line Array Driver With Wave Guide

COOKIES: Our website uses cookies in order to provide a better online experience, this is essential for use of the shopping basket, and to login to our website. We require your consent to use cookies in order to meet relevant regulations. Please CLICK HERE to indicate your consent and continue using our website. We do not use third party tracking cookies on our website, cookies are used for this site's functionality only.

B & C :: B & C High Frequency Drivers :: B & C Line Array Drivers

B & C

B&C WGX800 Line Array Driver With Wave Guide

Product Code: BACWGX800 | Brand: B & C | Model: WGX800

B&C WGX800 Line Array Driver With Wave Guide

£368.27
£306.89 ex VAT

2-3 £357.22 ea.

4-7 £349.85 ea.

8+ £342.49 ea.

Login to see JAM Club pricing
Not a member? Join Now

Usually available in <br>3-5 months

Usually available in
3-5 months

Request stock Info

FREE DELIVERY

for mainland UK

B&C WGX800 Line Array Driver With Wave Guide

Click here to request product information for this item

Specifications:

Horizontal coverage 120 degrees Max
Active radiating factor 93.7 %
Recommended crossover 0.8 kHz
Waveguide material Cast Aluminium
Nominal impedance 8 ohms
Minimum impedance 8.6 ohms
Nominal power handling 110 W
Continuous power handling 220 W
Sensitivity (1W/1m) 108.0 dB
Frequency range 1 - 17 kHz
Voice coil diameter 75 mm (3.0 in)
Winding material Aluminium
Diaphragm material Composite Polyimide/Titanium
Flux density 1.85 T
Magnet material Neodymium Ring

Mounting And Shipping Info:

Waveguide baffle cutout 153x25 mm (6x1 in) Driver diameter 124 mm (4.9 in)
Dimensions 163x130x235 mm (6.4x5.1x9.3 in) Net weight 3.3 kg (7.3 lb)
Shipping units 1 Shipping weight 3.4 kg (7.5 lb)
Shipping box 245x140x175 mm (9.6x5.5x6.9 in)
