B&C WG400 Line Array Driver With Wave Guide


Product Code: BACWG400 | Brand: B & C | Model: WG400
B&C WG400 Line Array Driver With Wave Guide

B&C WG400 Line Array Driver With Wave Guide B&C WG400 Line Array Driver With Wave Guide B&C WG400 Line Array Driver With Wave Guide B&C WG400 Line Array Driver With Wave Guide
£155.65
£129.71 ex VAT
2-3 £150.98 ea.4-7 £147.87 ea.8+ £144.76 ea.
Login to see JAM Club pricing
Not a member? Join Now
Usually available in <br>3-4 weeks
Usually available in
3-4 weeks
£1.16 DELIVERY to mainland UK.
B&C WG400 Line Array Driver With Wave Guide

Line Array optimized Waveguide with DE400 driver
140° max horizontal coverage
100 W continuous program power capacity
44 mm (1.7 in) aluminium voice coil
Polyimide diaphragm

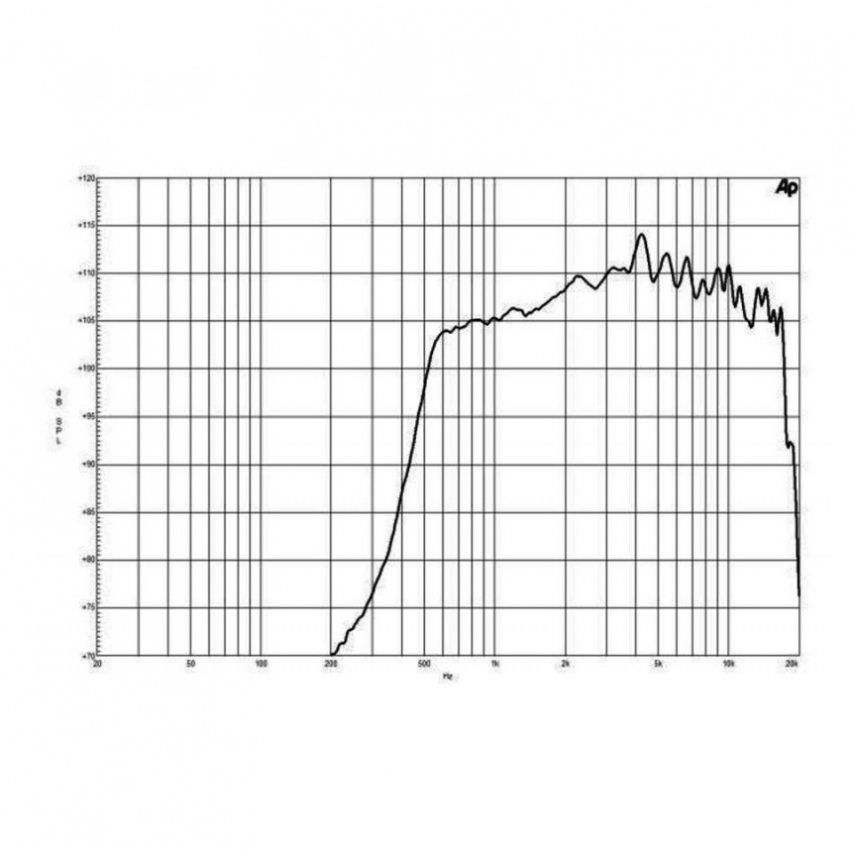

1200 - 18000 Hz response
108.5 dB sensitivity
Compact Neodymium magnet assembly
Specifications:

  • Horizontal coverage 140 degrees Max
  • Active radiating factor 92.5 %
  • Recommended crossover 1.5 kHz
  • Waveguide material Cast Aluminium
  • Nominal impedance 8 ohms
  • Minimum impedance 7.7 ohms
  • Nominal power handling 50 W
  • Continuous power handling 100 W
  • Sensitivity (1W/1m) 108.5 dB
  • Frequency range 1 - 18 kHz
  • Voice coil diameter 44 mm (1.7 in)
  • Winding material Aluminium
  • Diaphragm material Polyimide
  • Flux density 1.8 T
  • Magnet material Neodymium Ring


Mounting And Shipping Info:

  • Waveguide baffle cutout 102x25 mm (4x1 in)
  • Driver diameter 86 mm (3.3 in)
  • Dimensions 111x87x155 mm (4.4x3.5x6.1 in)
  • Net weight 1.3 kg (2.9 lb)
  • Shipping units 1
  • Shipping weight 1.35 kg (3.0 lb)
  • Shipping box 120x95x180 mm (4.7x3.7x7.1 in)
