B & C : B & C DE880TN

B & C :: B & C High Frequency Drivers :: B & C 1.4 Inch Bolt On

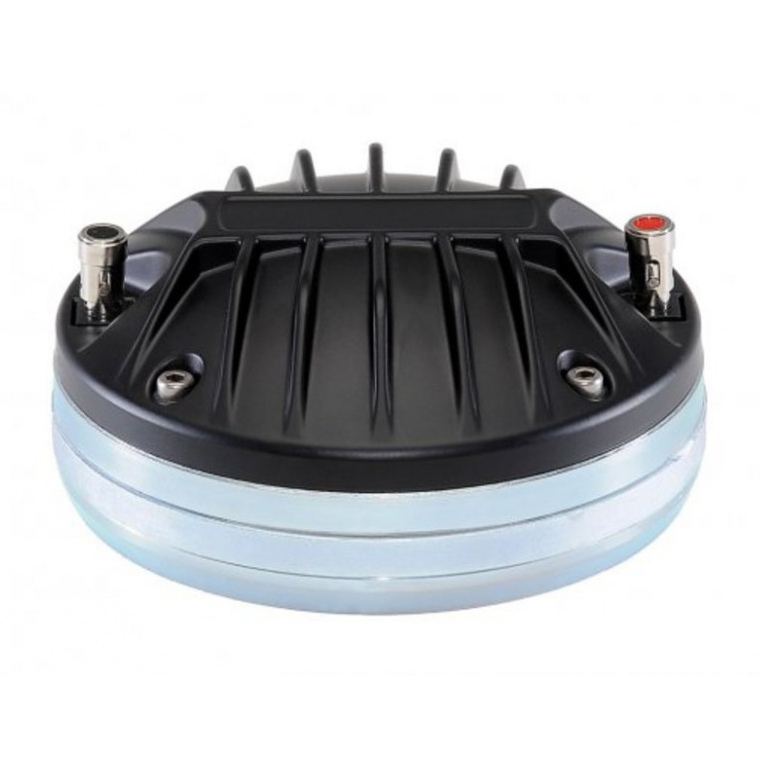

B&C DE880TN 110W 16 Ohm 1.4" Bolt On Neodymium Compression Driver

Product Code: BACDE880TNB | Brand: B & C | Model: DE880TN

B&C DE880TN 110W 16 Ohm 1.4 inch Bolt On Neodymium Compression Driver

£268.15
£223.46 ex VAT

Usually available in
3-4 weeks

Request stock Info

FREE DELIVERY

for mainland UK

Compatibility:

HK Audio CX12 9940356 Tweeter
HK Audio C8 9940356 Tweeter
HK Audio CX15 9940356 Tweeter
HK Audio C6 9940356 Tweeter
HK Audio CX210 LT 9940356 Tweeter
HK Audio C10 9940356 Tweeter

Search compatibility database

B&C DE880TN 110W 16 Ohm 1.4" Bolt On Neodymium Compression Driver

The DE880TN is the latest version of our premium 75mm (3.0 in) voice coil, neodymium high frequency driver. The diaphragm in this model has been completely redesigned to incorporate a bent edge voice coil former, new dome and surround geometry and an optimized phase plug. These modifications combine to better control diaphragm displacement and deformations, resulting in lower distortion and a smoother higher frequency response above 10kHz.

220 W continuous program power capacity
1.4" horn throat diameter
75 mm (3 in) aluminium voice coil
Titanium diaphragm
500 - 18000 Hz response
108 dB sensitivity
Neodymium magnet assembly with shorting copper cap

Specifications:

Throat diameter 36 mm (1.4 in)
Nominal impedance 16 ohms
Minimum impedance
Nominal power handling 110 W
Continuous power handling 220 W
Sensitivity (1W/1m) 108.0 dB
Frequency range 1 - 18 kHz
Recommended crossover 1.2 kHz
Voice coil diameter 75 mm (3.0 in)
Winding material Aluminium
Inductance 0.1 mH
Diaphragm material Titanium
Flux density 1.85 T
Magnet material Neodymium Ring

Mounting And Shipping Info:

Four M6 holes 90 degrees on 102 mm (4 in) diameter
Overall diameter 124 mm (4.9 in)
Depth 54 mm (2.13 in)
Net weight 2.1 kg (4.6 lb)
Replacement Diaphragm MMD3DTN8M
