B & C : B & C DE250 :: HOT DEAL: £78.00

B & C :: B & C High Frequency Drivers :: B & C 1 Inch Bolt On

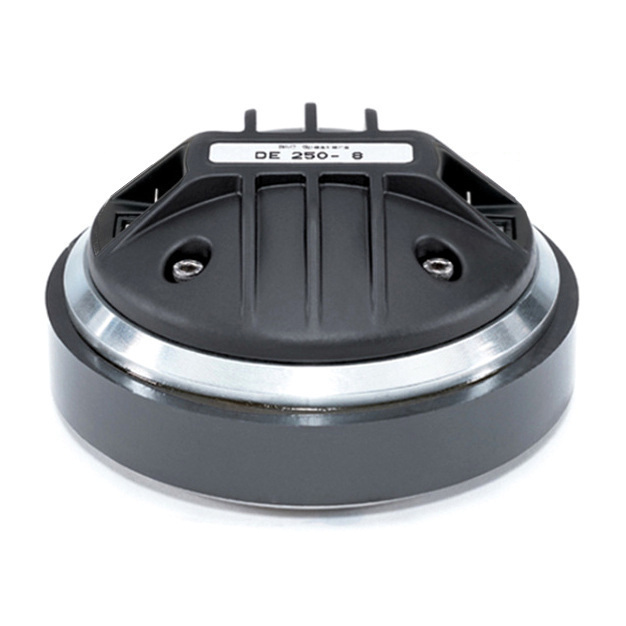

B&C DE250 1" 60W 16 Ohm HF Driver

Product Code: BACDE250B | Brand: B & C | Model: DE250

HOT DEAL:
£78.00
was £81.83

2-3 £77.00 ea.

4-7 £73.00 ea.

8+ £71.00 ea.

6
IN STOCK

Request stock Info

£6.77

DELIVERY to mainland UK.

Compatibility:

Nexo PS10 R2 05HPADE250-16 Tweeter

Search compatibility database

B&C DE250 1" 60W 16 Ohm HF Driver

120 W continuous program power capacity
1" horn throat diameter
44 mm (1.7 in) aluminium voice coil
Polyimide diaphragm
1000 - 18000 Hz response
108.5 dB sensitivity

Specifications:

Throat diameter 25 mm (1.0 in)
Nominal impedance
Minimum impedance
Nominal power handling 60 W
Continuous power handling 120 W
Sensitivity (1W/1m) 108.5 dB
Frequency range 1 - 18 kHz
Recommended crossover 1.6 kHz
Voice coil diameter 44 mm (1.7 in)
Winding material Aluminium
Inductance 0.11 mH
Diaphragm material Polyimide
Flux density 1.85 T
Magnet material Ferrite

Mounting And Shipping Info:

Two M6 holes 180 degrees apart on 76 mm (3 in) diameter Three M6 holes 120 degrees apart on 57 mm (2.2 in) diameter
Overall diameter 120 mm (4.7 in)
Depth 62 mm (2.4 in)
Net weight 2.1 kg (4.6 lb)
Replacement Diaphragm MMDDE25016

Other B & C products similar to B&C DE250 1" 60W 16 Ohm HF Driver:

	B&C DE16 30W 16 Ohm 1" Bolt On Compression Driver £67.99 inc VAT (£56.66 ex VAT)

	B&C DE36 35W 16 Ohm 1" Bolt On Compression Driver £56.04 inc VAT (£46.70 ex VAT)

	B&C DE14 - 1" 30W 8 Ohm Compression Driver £55.52 inc VAT (£46.27 ex VAT)

	B&C DE160 40W 16 Ohm 1" Bolt On Compression Driver £73.63 inc VAT (£61.36 ex VAT)

UK & ROI

Delivery Info for B&C DE250 1 inch 60W 16 Ohm HF Driver to locations within the United Kingdom and Ireland

EUROPE

Our database has the following results for compatibility of this product with common speakers and components.

Nexo PS10 R2 05HPADE250-16 | Tweeter | Original

Our database of parts includes a wide range of products, and in many cases offers cost effective alternatives for repair. Alternatives are loosely grouped into three types:

Original - Usually an exact match to the original product, and just the 'standard' part from the factory which gets rebadged by manufacturer with their own brand and part number. Occasionally, there are subtle tweaks made from the standard part, but its virtually impossible for us to determine this. If we have listed the part as Original, it means we are confident the performance is the same.
Aftermarket - Aftermarket parts often become available from factories in the far east once the original part is no longer manufactured. They are intended to be a close match, and provide a cost-effective alternative.
Equivalent - These are alternative options, which provide very similar performance, but are not the same as the original. In some cases the performance may actually be improved. We have used both our own experience, and feedback from customers in generating list of alternatives. Alternatives like this are useful when the original part is no longer made, there is no aftermarket option, so the only choice is to upgrade with the nearest current equivalent product.
