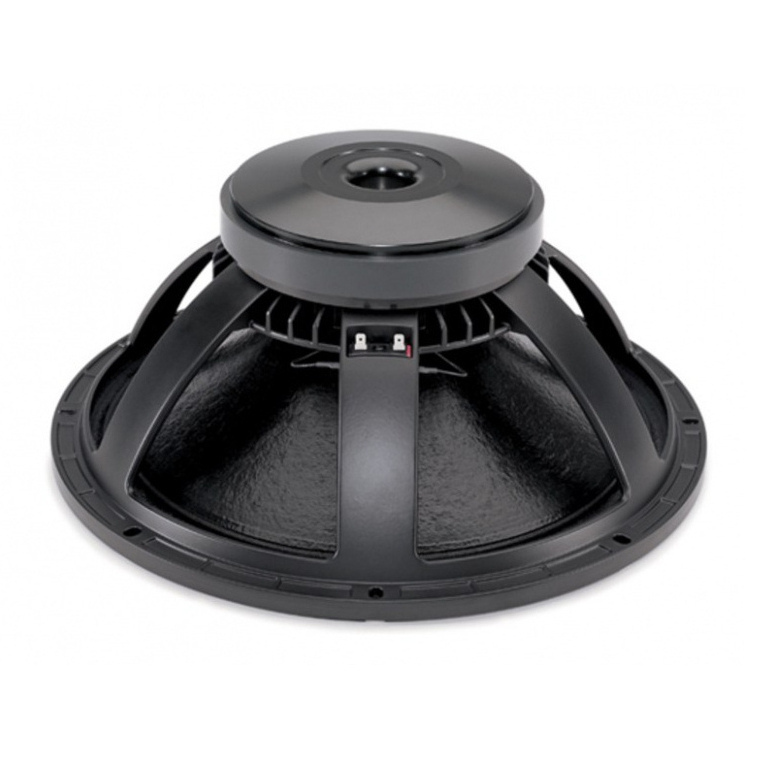

B&C 18PZB100 - 18" 700W 8 Ohm Loudspeaker
- 1400 W continuous program power capacity
- 100 mm (4 in) copper voice coil
- 40 - 2000 Hz response
- 97 dB sensitivity
- Double silicone spider with optimized compliance
Specifications
- Nominal diameter 460 mm (18.0 in)
- Nominal impedance 8 Ω
- Minimum impedance 6.5 Ω
- Nominal power handling * 700 W
- Continuous power handling * 1400 W
- Sensitivity (1W/1m) * 97.0 dB
- Frequency range 40 - 2000 Hz
- Voice coil diameter 100 mm (4.0 in)
- Winding material Copper
- Former material Glass Fibre
- Winding depth 21 mm (0.83 in)
- Magnetic gap depth 8 mm (0.31 in)
- Flux density 1.15 T
Design
- Surround shape Double Roll
- Cone shape Exponential
- Magnet material Ferrite
- Spider Double Silicone
- Pole design Straight Pole
- Woofer cone treatment TWP Waterproof Both Sides
- Recommended enclosure 160.0 dm3 (5.65 ft3)
- Recommended tuning 39 Hz
Parameters
- Fs 30 Hz
- Re 5.3 Ω
- Qes 0.25
- Qms 8.8
- Qts 0.24
- Vas 297.0 dm3 (10.5 ft3)
- Sd 1134.0 cm2 (175.8 in2)
- η₀ 3.1 %
- Xmax 8.0 mm
- Xvar 8.0 mm
- Mms 170 g
- Bl 26.0 Txm
- Le 2.1 mH
- EBP 120 Hz
Mounting and Shipping Info
- Overall diameter 480 mm (18.0 in)
- Bolt circle diameter 440 mm (17.3 in)
- Baffle cutout diameter 422.0 mm (16.6 in)
- Depth 202 mm (7.95 in)
- Flange and gasket thickness 16 mm (0.62 in)
- Air volume occupied by driver 9.5 dm3 (0.33 ft3)
- Net weight 12.1 kg (26.6 lb)
- Shipping units 1
- Shipping weight 14.0 kg (30.8 lb)
- Shipping box 520x520x240 mm (20.5x20.5x9.4 in)
