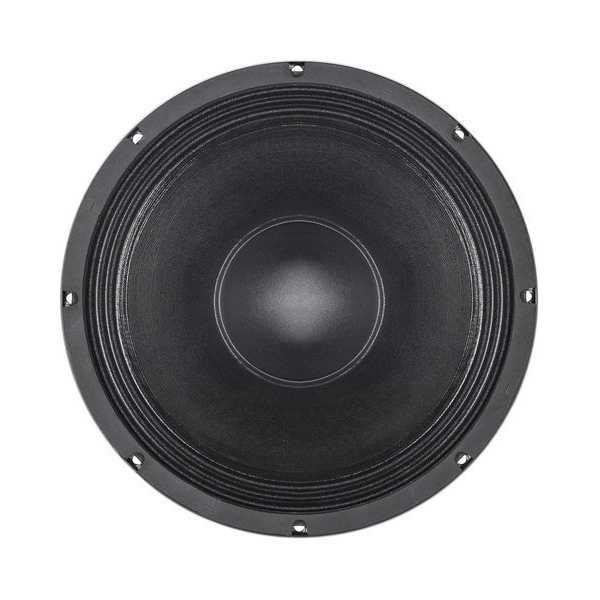

B&C 12CLA76 12 inch 350W 8 Ohm Neodymium Loudspeaker
COOKIES: Our website uses cookies in order to provide a better online experience, this is essential for use of the shopping basket, and to login to our website. We require your consent to use cookies in order to meet relevant regulations. Please CLICK HERE to indicate your consent and continue using our website. We do not use third party tracking cookies on our website, cookies are used for this site's functionality only.
B & C
B&C 12CLA76 12" 350W 8 Ohm Neodymium Loudspeaker


Product Code: BAC12CLA76A | Brand: B & C | Model: 12CLA76
B&C 12CLA76 12 inch 350W 8 Ohm Neodymium Loudspeaker

B&C 12CLA76 12 inch 350W 8 Ohm Neodymium Loudspeaker B&C 12CLA76 12 inch 350W 8 Ohm Neodymium Loudspeaker B&C 12CLA76 12 inch 350W 8 Ohm Neodymium Loudspeaker B&C 12CLA76 12 inch 350W 8 Ohm Neodymium Loudspeaker
£153.85
£128.21 ex VAT
2-3 £149.24 ea.4-7 £146.16 ea.8+ £143.08 ea.
Login to see JAM Club pricing
Not a member? Join Now
FREE DELIVERY for mainland UK
B&C 12CLA76 12" 350W 8 Ohm Neodymium Loudspeaker

Careful optimisation of B&C's lightest woofer series, now offered with a high temperature copper-clad aluminium voice coil, is rewarded with higher sensitivity and smoother high frequency response. An efficiently designed motor makes these a good fit for many more applications, especially where flown, and manufacturing design means the CLA series can be price competitive with ferrite motor designs offering similar performance.

  • 700 W continuous program power capacity
  • 76 mm (3 in) copper clad aluminum voice coil
  • 50 - 3000 Hz response
  • 98.5 dB sensitivity
  • Ventilated voice coil gap for reduced power compression
    Specifications

  • Nominal Diameter 320 mm (12.0 in)
  • Nominal Impedance 8 Ω
  • Minimum Impedance 6.1 Ω
  • Nominal Power Handling 1350 W
  • Continuous Power Handling 2700 W
  • Sensitivity 398.5 dB
  • Frequency Range 50 - 3000 Hz
  • Voice Coil Diameter 76 mm (3.0 in)
  • Winding Material CCAW
  • Former Material Glass Fibre
  • Winding Depth 16.0 mm (0.63 in)
  • Magnetic Gap Depth 11.0 mm (0.43 in)
  • Flux Density 1.2 T

        • Design

      • Surround Shape Triple Roll
      • Cone Shape Exponential
      • Magnet Material Neodymium Inside Slug
      • Spider Single
      • Pole Design Straight Pole
      • Woofer Cone Treatment WP Waterproof Front Side
      • Recommended Enclosure 40.0 dm3 (1.41 ft3)
      • Recommended Tuning 60 Hz

            • Parameters

          • Resonance Frequency 52 Hz
          • Re 5.1 Ω
          • Qes 0.26
          • Qms 4.9
          • Qts 0.25
          • Vas 56.0 dm3 (1.98 ft3)
          • Sd 522.0 cm2 (80.91 in2)
          • η₀ 2.9 %
          • Xmax 5.3 mm
          • Xvar 6.5 mm
          • Mms 64.0 g
          • Bl 20.2 Txm
          • Le 0.44 mH
          • EBP 200 Hz

                • Mounting and Shipping Info

              • Overall Diameter 313 mm (12.32 in)
              • Bolt Circle Diameter 299 mm (11.77 in)
              • Baffle Cutout Diameter 283.0 mm (11.14 in)
