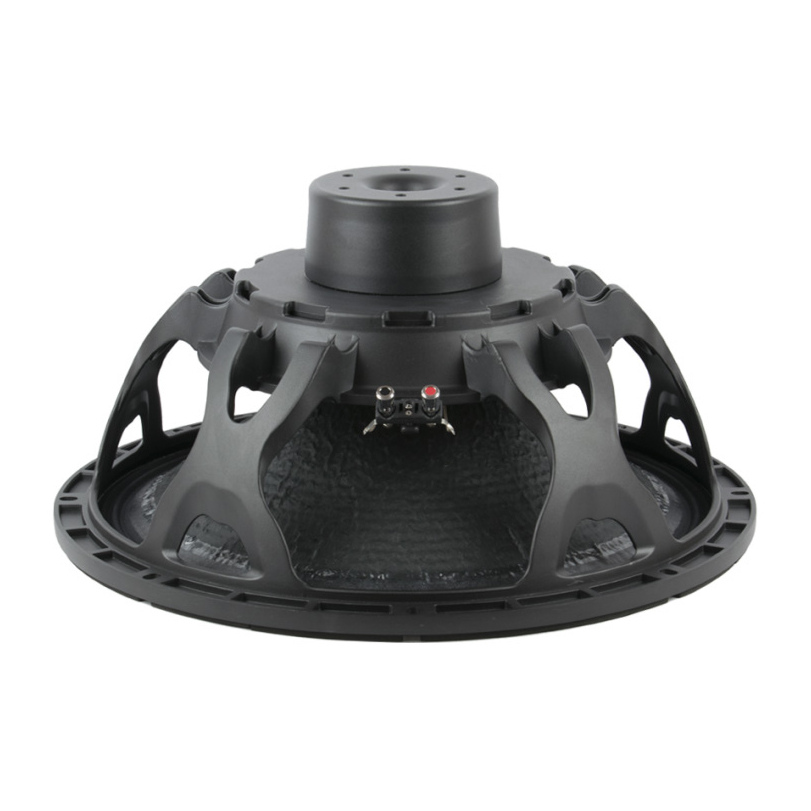

Beyma 21LEX1600Nd 1600W 21" 8 Ohm Loudspeaker
Click here to request product information for this item
TECHNICAL SPECIFICATIONS:
THIELE SMALL PARAMETERS:
CONSTRUCTIVE DETAILS:
- Nominal diameter 540 mm 21 in
- Nominal impedance 8 Ohm
- Minimum impedance 7.2 ohm
- Power capacity 1600 W AES
- Program power 3200 W
- Sensitivity 99.5 dB 1 W/1 m @ ZN
- Frequency range 30-1000 Hz
- Recommended enclosure volume 150 l
- Voice coil diameter 101.6 mm 4 in
- BL factor 33 N/A
- Moving mass 0.305 kg
- Winding length 32 mm
- Air gap height 14 mm
- Xdamage pp 65 mm
THIELE SMALL PARAMETERS:
- Fs 30 Hz
- Re 5.4 ohm
- Qms 4.4
- Qes 0.29
- Qts 0.27
- Vas 394 l
- Cms 92 µm / N
- Rms 13 kg/s
- Efficiency % 3.6
- Sd 0.1734 m²
- Xmax 13 mm
- Vd 2254 cm³
- Le @1 kHz 1.9 mH
CONSTRUCTIVE DETAILS:
- Depth 268 mm 10.6 in
- Net weight 11.8 kg 26.01 lb
- Total weight 14.3 kg 31.5 lb
- Magnet Neodymium
