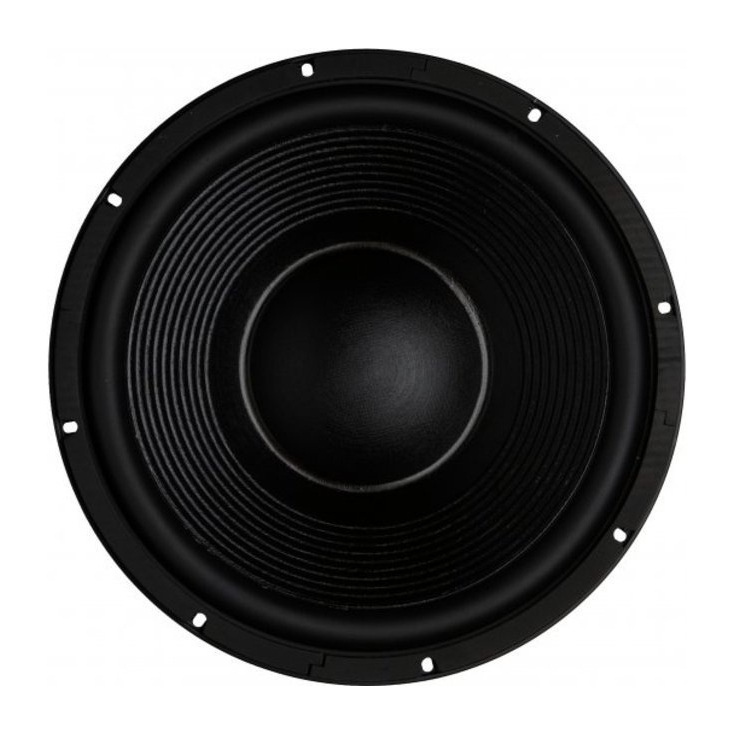

B&C 15BG100 15" 1000W 4 Ohm
- 2000 W continuous program power capacity
- 100 mm (4 in) copper voice coil
- 35 - 1000 Hz response
- 94.5 dB sensitivity
- FEA optimized Neodymium magnet assembly
- Double silicone spider with optimized compliance
- Ventilated voice coil gap for reduced power compression
Specifications
- Nominal diameter 380 mm (15.0 in)
- Nominal impedance 4 Ω
- Nominal power handling 1000 W
- Continuous power handling 2000 W
- Sensitivity (1W/1m) 94.5 dB
- Frequency range 35 - 1000 Hz
- Voice coil diameter 100 mm (4.0 in)
- Winding material Copper
- Former material Glass Fibre
- Winding depth 27 mm (1.05 in)
- Magnetic gap depth 11 mm (0.43 in)
Design
- Surround shape Roll
- Cone shape Radial
- Magnet material Neodymium Inside Slug
- Spider Double Silicone
- Pole design T-Pole
- Woofer cone treatment WP Waterproof Front Side
- Recommended enclosure 160.0 dm3 (5.65 ft3)
- Recommended tuning 29 Hz
Parameters
- Fs 36 Hz
- Vas 83.0 dm3 (2.93 ft3)
- Sd 855.0 cm2 (132.5 in2)
- Xmax 10.5 mm
- Xvar 14.0 mm
- Mms 240 g
Mounting and Shipping Info
- Overall diameter 393 mm (15.5 in)
- Bolt circle diameter 374 mm (14.7 in)
- Baffle cutout diameter 354.0 mm (13.9 in)
- Depth 189 mm (7.44 in)
- Flange and gasket thickness 24 mm (0.94 in)
- Air volume occupied by driver 6.0 dm3 (0.21 ft3)
- Net weight 8.6 kg (18.9 lb)
- Shipping units 1
- Shipping weight 10.0 kg (22.0 lb)
- Shipping box 420x420x200 mm (16.5x16.5x7.9 in)
