Designed specifically to provide powerful and accurate bass frequencies with minimal distortion and power compression.
The PD.1850/2 is the optimum choice for top of the range sub bass systems where the ability to take punishment in the most demanding applications is the ultimate selection criterion.
Suitable for sound reinforcement in a variety of enclosure types since it allows enclosure designers considerably more freedom with specialised loading techniques without having to make allowances for physical characteristics or power handling limitations which are typically the result of more traditional designs. Appropriate for applications as diverse as scoop bins, conventional reflex cabinets and horn loaded systems.

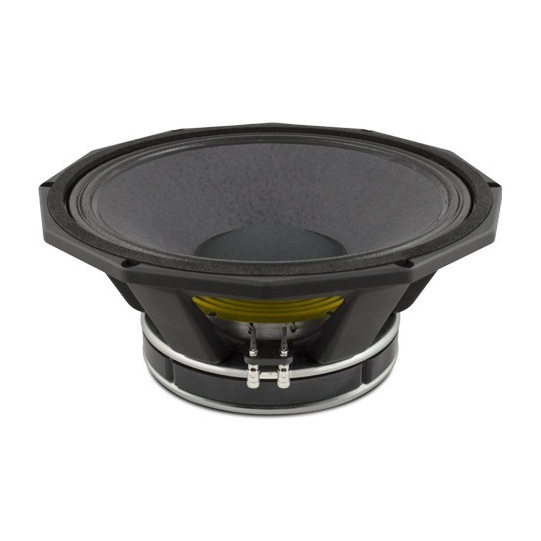

- Brand new 18" chassis design
- Heavy duty cast aluminium frame for increased rigidity
- 170 oz ceramic magnet
- Power compression only 1.6dB at rated power *
- Distortion ** 2nd Harmonic < 1 % 3rd Harmonic < 1 %
- Advanced magnetic assembly incorporating a composite alloy and steel pole piece giving a uniform and stable magnetic field, improving linear excursion and providing an efficient thermal path to dissipate the heat produced by the voice coil
- A B/L in excess of 31 T/m for fast accurate lows
- Double suspension system maintaining a pure piston action for the moving mass and provides additional durability against the rigours of life on the road
Specifications:
- Nominal Diameter 18" / 460 mm
- Voice Coil Diameter 5.0" / 127 mm
- Nominal Impedance 4 Ω
- Power Rating 800 Watts (A.E.S.)
- Peak Power 3200 Watts (A.E.S.)
- Sensitivity (1w / 1m) 98 dB
- Frequency Range 35 Hz - 2 kHz
- Recommended Enclosure Volume 90 - 220 Litres
- Resonance 33 Hz
- Voice Coil Winding Depth 1.1" / 28 mm
- Magnet Gap Depth 0.453" / 12 mm
- Magnet Weight 170 oz / 4.8 Kg
- Flux Density 1.18 Tesla
- Magnet Material Ceramic
- Voice Coil Material Copper
- Dust Dome Material Paper
- Suspension Material Fabric
- Cone / Surround Material Paper / Fabric
Thiele Small Parameters:
- FS 33.15 Hz
- RE 2.7 Ω
- Qts 0.24
- Qms 15.42
- Qes 0.24
- Vas 205 litres
- Mms 215 grams
- Sd 1164 cm
2 - CMS 107 µmn
- BL 31 T/m
- Xmax 11.05 mm
- Vd 1.28 litres
- Reference Efficiency 2.88%
Mounting and Shipping Information:
- Fixing Holes x6 Fixing Holes M8
- Nett Weight 50.26 lb / 22.80 Kg
- Shipping Weight 58.64 lb / 26.60 Kg
*1 Power compression is the reduction of sensitivity at the specified power. Higher power ratings do not necessarily give a proportionate increase in SPL therefore the maximum SPL of the driver may significantly exceed that of other manufacturers with high power ratings.
** Distortion is measured at 10% of the rated power (AES Standard).
Please note that frequency response measurements are supplied for comparison purposes only and are not a measure of the low frequency performance which may be achievable in a fully optimised system.
