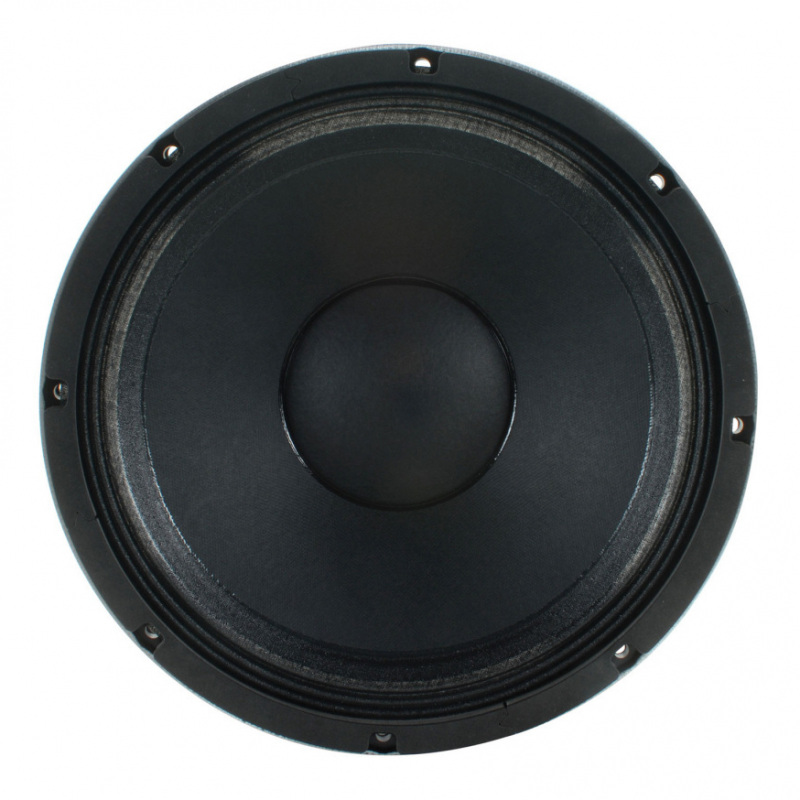

Eminence Kappalite 3012LF - 12" 450W 8 Ohm
SPL: 95.5 1W/1m Fs: 37 Hz Xmax: 9.1mm Neodymium

Product Code: EMIKLIT3012LF | Brand: Eminence | Model: KAPPALITE3012LF
Eminence Kappalite 3012LF - 12 inch 450W 8 Ohm

Eminence Kappalite 3012LF - 12 inch 450W 8 Ohm Eminence Kappalite 3012LF - 12 inch 450W 8 Ohm Eminence Kappalite 3012LF - 12 inch 450W 8 Ohm Eminence Kappalite 3012LF - 12 inch 450W 8 Ohm
£222.04
£185.03 ex VAT
2-3 £218.71 ea.4-7 £215.37 ea.8+ £210.93 ea.
Login to see JAM Club pricing
Not a member? Join Now
FREE DELIVERY for mainland UK
Eminence Kappalite 3012LF 450W 12" Driver Lightweight Neodymium Driver

Recommended for professional audio and bass in a vented enclosure.
  • Nominal Basket Diameter 12", 305mm
  • Nominal Impedance* 8 ohms
  • Power Rating - Watts: 450W, Music Program: 900W
  • Resonance 37Hz
  • Usable Frequency Range 46Hz - 2kHz
  • Sensitivity*** 95.5dB
  • Magnet Weight 11 oz.
  • Gap Height 0.36", 9.27mm
  • Voice Coil Diameter 3", 76.2mm


Thiele & Small Parameters:

  • Resonant Frequency (fs) 37.02Hz
  • DC Resistance (Re) 5.6
  • Coil Inductance (Le) 0.98mH
  • Mechanical Q (Qms) 6.94
  • Electromagnetic Q (Qes) 0.34
  • Total Q (Qts) 0.32
  • Compliance Equivalent Volume (Vas) 106.65 liters / 3.77 cu.ft.
  • Peak Diaphragm Displacement Volume (Vd) 496cc
  • Mechanical Compliance of Suspension (Cms) 0.26mm/N
  • BL Product (BL) 16.7 T-M
  • Diaphragm Mass Inc. Airload (MMs) 72.4 grams
  • Efficiency Bandwidth Product (EBP) 109.7
  • Maximum Linear Excursion (Xmax) 9.1mm
  • Surface Area of Cone (Sd) 545.4 cm2
  • Maximum Mechanical Limit (Xlim) 14.5mm


Mounting Information:

  • Recommended Enclosure Volume: Sealed 23-59 liters / 0.8-2.1 cu.ft., Vented 37-85 liters / 1.3-3 cu.ft.
  • Driver Volume Displaced 95.3 cu.in. / 1.56 liters
  • Overall Diameter 12.38", 314.45mm
  • Baffle Hole Diameter 11.06", 280.9mm
  • Front Sealing Gasket Fitted as standard
  • Rear Sealing Gasket Fitted as standard
  • Mounting Holes Diameter 0.28", 7.1mm
  • Mounting Holes B.C.D. 11.62", 295.2mm
  • Depth 6", 152.4mm
  • Net Weight 7.6 lbs, 3.45 kg
  • Shipping Weight 9.2 lbs, 4.17 kgs


Materials of Construction:

  • Coil Construction Copper voice coil
  • Coil Former Kapton former
  • Magnet Composition Neodymium magnet
  • Core Details Vented core
  • Basket Materials Die-cast aluminum basket
  • Cone Composition Treated paper cone
  • Cone Edge Composition Sealed cloth Edge
  • Dust Cap Composition Treated paper dust cap
