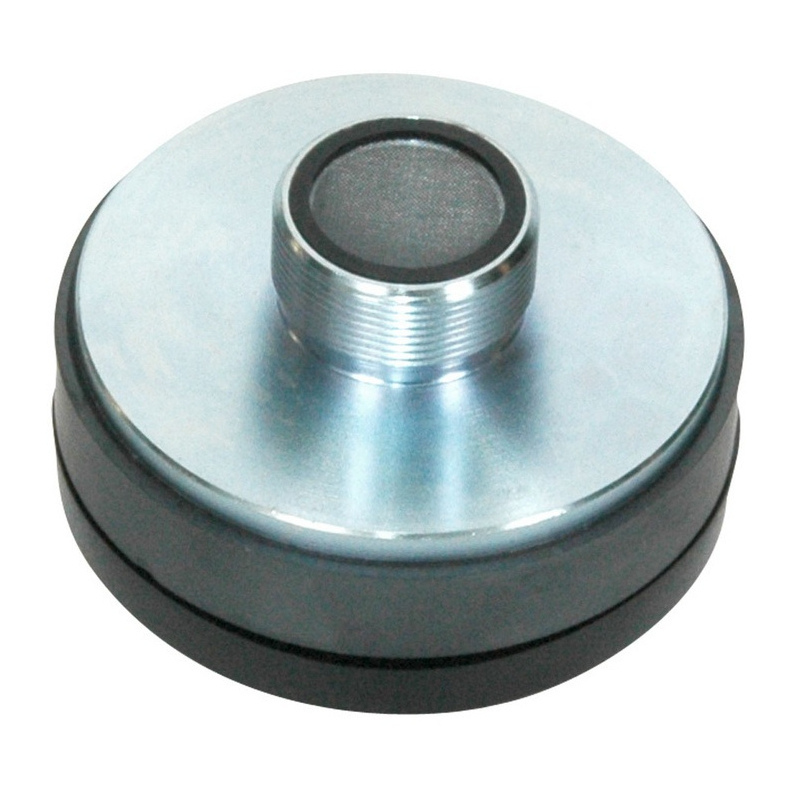

Eminence ASD1001 1" Screw-in Throat Compression Driver 50W

Specification:

• Throat Size 1", 25.4 mm
• Nominal Impedance 8 ohms
• Power Rating 50W (EIA426B Specification, 1.6 kHz 18 dB)
• Resonance 1.23 kHz
• Usable Frequency Range 2.5 kHz - 20 kHz
• Recommended Crossover 2.5 kHz / 18 dB
• Sensitivity 104 dB
• Magnet Weight 12 oz., 0.34 kg
• Voice Coil Diameter 1.3", 33 mm
• Re 6.7
• Le 1.1 mH

Mounting Information:

• Overall Diameter 3.5", 88.9 mm
• Mounting Holes Diameter N/A
• Mounting Holes B.C.D. N/A
• Mounting Thread 1 3/8" 18 NEF ext.
• Depth 2.45", 62 mm

Materials of Construction:

• Diaphragm Material Diamond Titanium

Our database has the following results for compatibility of this product with common speakers and components.

Samson S215HD | Tweeter | Equivalent
Samson S15-HD | Tweeter | Equivalent
Samson S-215HD | Tweeter | Equivalent
Cerwin Vega Intense 152 V2 | Tweeter | Equivalent

Our database of parts includes a wide range of products, and in many cases offers cost effective alternatives for repair. Alternatives are loosely grouped into three types:

Original - Usually an exact match to the original product, and just the 'standard' part from the factory which gets rebadged by manufacturer with their own brand and part number. Occasionally, there are subtle tweaks made from the standard part, but its virtually impossible for us to determine this. If we have listed the part as Original, it means we are confident the performance is the same.
Aftermarket - Aftermarket parts often become available from factories in the far east once the original part is no longer manufactured. They are intended to be a close match, and provide a cost-effective alternative.
Equivalent - These are alternative options, which provide very similar performance, but are not the same as the original. In some cases the performance may actually be improved. We have used both our own experience, and feedback from customers in generating list of alternatives. Alternatives like this are useful when the original part is no longer made, there is no aftermarket option, so the only choice is to upgrade with the nearest current equivalent product.
