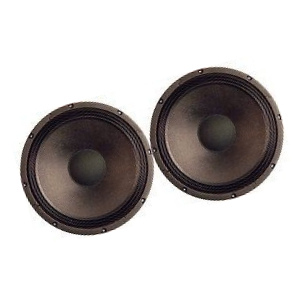

Eminence Alpha 12 Twin Pack
150W 12 inch 8 Ohm Speaker Driver

Product Code: EMIALPHA12A_2PK | Brand: Eminence | Model:
Eminence Alpha 12 Twin Pack
£171.50
£142.92 ex VAT
Login to see JAM Club pricing
Not a member? Join Now
3
Available
FREE DELIVERY for mainland UK
Eminence Alpha 12 150W 12 inch 8 Ohm Speaker Driver

Ideal as a woofer for small two way systems, and keyboard and guitar combos.

Specification:

  • Nominal Basket Diameter 12", 304.8mm
  • Nominal Impedance* 8 ohms
  • Power Rating: Watts 150W, Music Program 300W
  • Resonance 49Hz
  • Usable Frequency Range 51Hz - 4.3kHz
  • Sensitivity*** 95.6dB
  • Magnet Weight 20 oz.
  • Gap Height 0.25", 6.35mm
  • Voice Coil Diameter 1.5", 38.1mm


Thiele & Small Parameters:

  • Resonant Frequency (fs) 49Hz
  • DC Resistance (Re) 6.3
  • Coil Inductance (Le) 0.79mH
  • Mechanical Q (Qms) 6.53
  • Electromagnetic Q (Qes) 0.88
  • Total Q (Qts) 0.77
  • Compliance Equivalent Volume (Vas) 121.5 liters / 4.3 cu.ft.
  • Peak Diaphragm Displacement Volume (Vd) 125cc
  • Mechanical Compliance of Suspension (Cms) 0.32mm/N
  • BL Product (BL) 8.5 T-M
  • Diaphragm Mass Inc. Airload (MMs) 33 grams
  • Efficiency Bandwidth Product (EBP) 56
  • Maximum Linear Excursion (Xmax) 2.4mm
  • Surface Area of Cone (Sd) 519.5 cm2
  • Maximum Mechanical Limit (Xlim) 6.6mm


Mounting Information:

  • Recommended Enclosure Volume
  • Sealed 17-22.7 liters / 0.6-0.8 cu.ft.
  • Vented 56.6-113.3 liters / 2-4 cu.ft.
  • Driver Volume Displaced 108.9 cu.in. / 1.78 liters
  • Overall Diameter 12.26", 311.4mm
  • Baffle Hole Diameter 11", 279.5mm
  • Front Sealing Gasket Fitted as standard
  • Rear Sealing Gasket Fitted as standard
  • Mounting Holes Diameter 0.25", 6.4mm
  • Mounting Holes B.C.D. 11.71", 297.5mm
  • Depth 4.73", 120mm
  • Net Weight 5.3 lbs, 2.4 kg
  • Shipping Weight 7.4 lbs, 3.4 kgs


Materials of Construction:

  • Coil Construction Copper voice coil
  • Coil Former Polyimide former
  • Magnet Composition Ferrite magnet
  • Core Details Vented and extended core
  • Basket Materials Pressed steel basket
  • Cone Composition Paper Cone
  • Cone Edge Composition Cloth cone edge
  • Dust Cap Composition Solid composition felt dust cap


Detailed specifications unavailable, please EMAIL the sales office for additional information.

Eminence Alpha 12 Twin Pack
Pack size: 2 units @ £171.50 incl VAT - Equivalent price: £85.75 incl VAT per item

Eminence Alpha 12 Twin Pack - currently in stock3 IN STOCK
Product Code: EMIALPHA12A_2PK

Eminence Alpha 12 Four Pack
Pack size: 4 units @ £337.79 incl VAT - Equivalent price: £84.45 incl VAT per item

Eminence Alpha 12 Four Pack - currently in stock1 IN STOCK
Product Code: EMIALPHA12A_4PK
Other Eminence products similar to Eminence Alpha 12 Twin Pack:
Eminence Beta 12A II - 12" 250W 8 Ohm

£103.46 inc VAT
(£86.22 ex VAT)

Eminence OMEGA PRO-12-2KW-8 12" Driver 1000W (AES) 8 Ohm

£221.81 inc VAT
(£184.84 ex VAT)

Eminence Delta 12LFC - 12" 500W 4 Ohm

£118.73 inc VAT
(£98.94 ex VAT)

Eminence LAB 12 - 12" 400W 6 Ohm

£213.65 inc VAT
(£178.04 ex VAT)

UK & ROI
Delivery Info for Eminence Alpha 12 Twin Pack to locations within the United Kingdom and Ireland
EUROPE
Delivery Info for Eminence Alpha 12 Twin Pack to locations in Europe
Eminence Alpha 12 Twin Pack is a package consisting of the following items:
 2 x Eminence Alpha 12 - 12" 150W 8 Ohm
SPL: 95.6 1W/1m Fs: 49 Hz Xmax: 2.4mm

6 IN STOCK
SEARCH results for other drivers with similar T-S Parameters to Eminence Alpha 12 150W 12 inch 8 Ohm Speaker Driver
