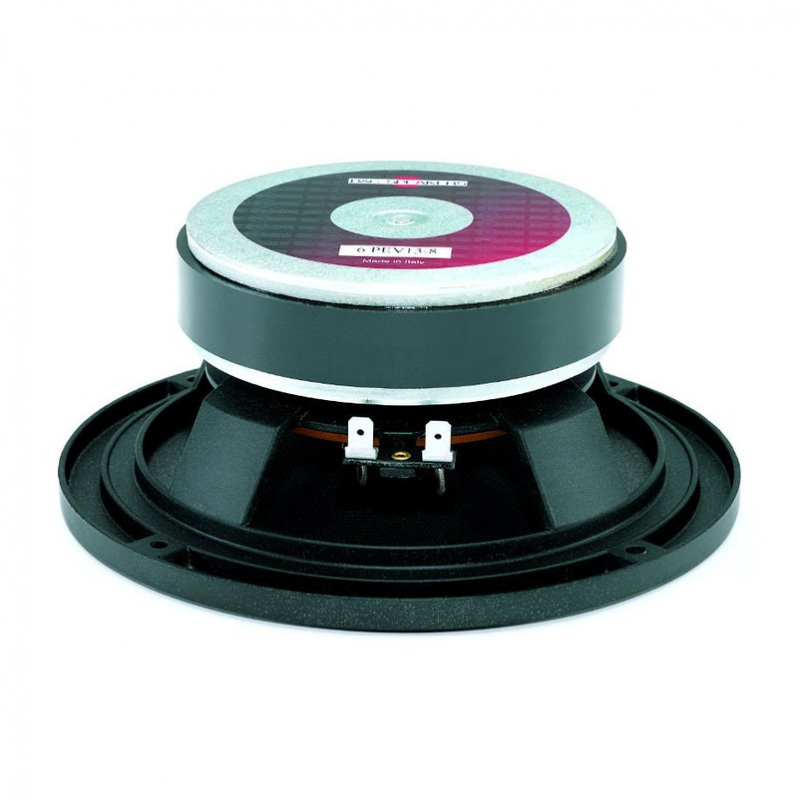

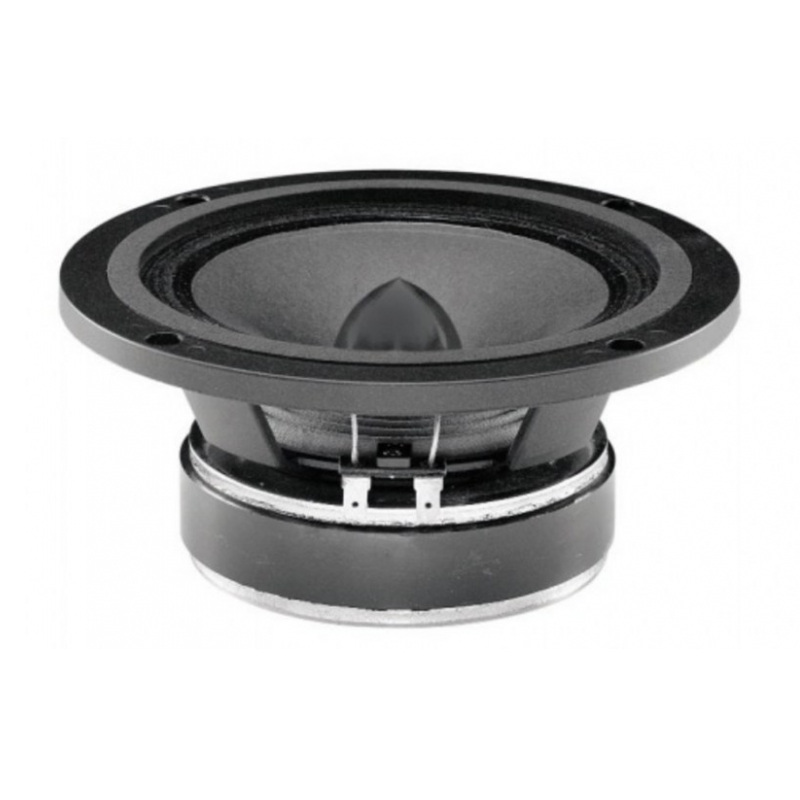

B&C 6PEV13 - 6" 120W 8 Ohm Loudspeaker
This is a suitable replacement midrange driver for certain 3-way Mackie enclosures, such as the SR-1530.
- 240 W continuous program power capacity
- 38 mm (1.5 in) aluminium voice coil
- 150 - 8000 Hz response
- 99 dB sensitivity
Specifications:
Design:
Parameters:
Mounting And Shipping Info:
- Nominal diameter 170 mm (6.5 in)
- Nominal impedance 8 ohms
- Minimum impedance 6.0 ohms
- Nominal power handling 120 W
- Continuous power handling 240 W
- Sensitivity (1W/1m) 99.0 dB

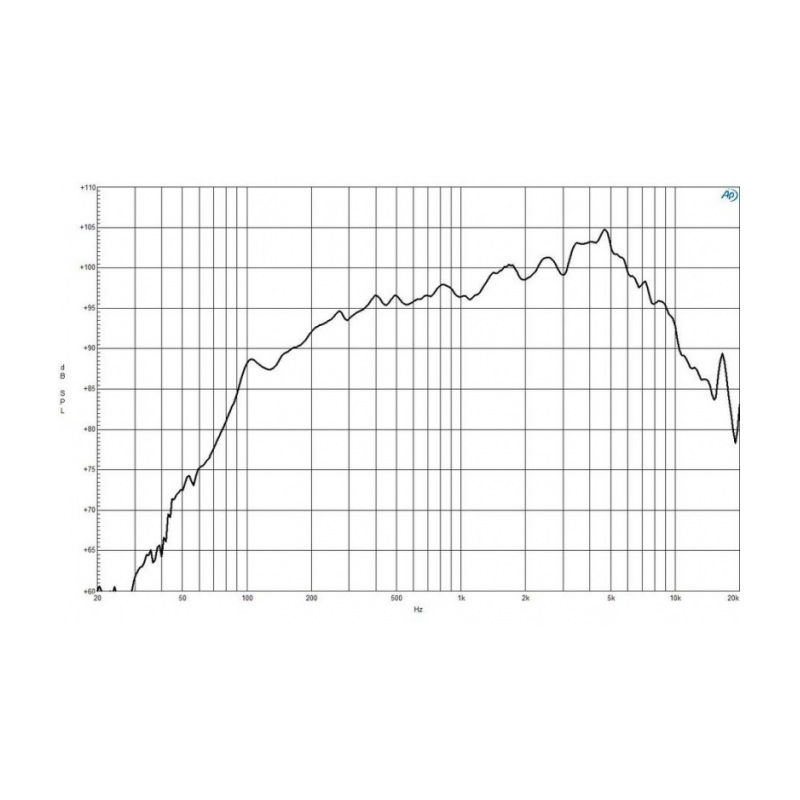

- Frequency range 150 - 8000 Hz
- Voice coil diameter 38 mm (1.5 in)
- Winding material Aluminium
- Former material Glass Fibre
- Winding depth 7 mm
- Magnetic gap depth 6 mm
- Flux density 1.4 T
Design:
- Surround shape Flat
- Cone shape Exponential
- Magnet material Ferrite
- Spider Single
- Pole design Straight Pole
- Woofer cone treatment None
Parameters:
- Fs 126 Hz
- Re 5.2 ohms
- Qes 0.39
- Qms 4.6
- Qts 0.36
- Vas 6.0 dm3
- Sd 132.0 cm2
- Reference efficiency 3.0 %
- Xmax 2.5 mm
- Xvar 1.5 mm
- Mms 6 g
- Bl 8.2 Txm
- Le 0.6 mH
- EBP 323 Hz
Mounting And Shipping Info:
- Overall diameter 187 mm
- Bolt circle diameter 172 mm
- Baffle cutout diameter 145.0 mm
- Depth 78 mm
- Flange and gasket thickness 11 mm
- Air volume occupied by driver 0.8 dm3
- Net weight 2.4 kg
- Shipping weight 2.9 kg
- Shipping box 215x215x135 mm
- Recone Kit RCK06PEV138
Other B & C products similar to B&C 6PEV13 - 6" 120W 8 Ohm Loudspeaker: |
|
SEARCH results for other drivers with similar T-S Parameters to B&C 6PEV13 - 6" 120W 8 Ohm Loudspeaker
Our database has the following results for compatibility of this product with common speakers and components.
Mackie SR-1530 MIDRANGE | Woofer | Equivalent
Mackie SR-1530 MIDRANGE | Woofer | Equivalent
Our database of parts includes a wide range of products, and in many cases offers cost effective alternatives for repair. Alternatives are loosely grouped into three types:
Original - Usually an exact match to the original product, and just the 'standard' part from the factory which gets rebadged by manufacturer with their own brand and part number. Occasionally, there are subtle tweaks made from the standard part, but its virtually impossible for us to determine this. If we have listed the part as Original, it means we are confident the performance is the same.Aftermarket - Aftermarket parts often become available from factories in the far east once the original part is no longer manufactured. They are intended to be a close match, and provide a cost-effective alternative.
Equivalent - These are alternative options, which provide very similar performance, but are not the same as the original. In some cases the performance may actually be improved. We have used both our own experience, and feedback from customers in generating list of alternatives. Alternatives like this are useful when the original part is no longer made, there is no aftermarket option, so the only choice is to upgrade with the nearest current equivalent product.
