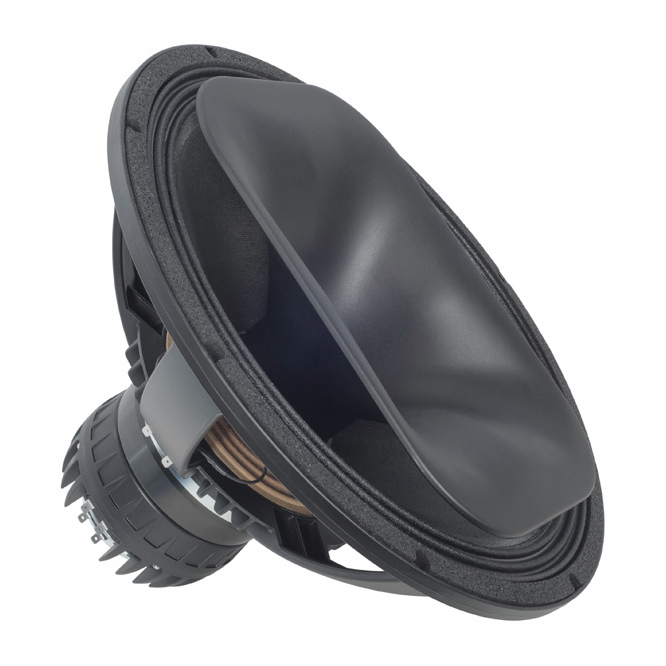

B&C 18HTX100 - Tri-axial Full Range Speaker 1000W
800W 18" Woofer couple with DCX464 co-axial MF/HF compression driver

Product Code: BAC18HTX100A | Brand: B & C | Model: 18HTX100
B&C 18HTX100 - Tri-axial Full Range Speaker 1000W

B&C 18HTX100 - Tri-axial Full Range Speaker 1000W B&C 18HTX100 - Tri-axial Full Range Speaker 1000W B&C 18HTX100 - Tri-axial Full Range Speaker 1000W B&C 18HTX100 - Tri-axial Full Range Speaker 1000W
£768.17
£640.14 ex VAT
2-3 £745.12 ea.4-7 £729.76 ea.8+ £714.40 ea.
Login to see JAM Club pricing
Not a member? Join Now
FREE DELIVERY for mainland UK
B&C 18HTX100 - Tri-axial Full Range Speaker 1000W

Are you tired of lacklustre audio that fails to deliver the quality you deserve? Look no further than the B&C 18HTX100 triaxial speaker! This innovative speaker combines state-of-the-art technology and expert craftsmanship to provide an audio experience like no other.

Here are just a few of the many benefits of the B&C 18HTX100 triaxial speaker:

Versatility: The triaxial design of the B&C 18HTX100 allows for it to be used in a variety of applications, where a coherent point source is required. Whether you're a professional audio engineer or just looking to improve your home audio setup, the B&C 18HTX100 is an excellent choice for live sound, home cinema, and many more applications

High Power: With a power handling capacity of 1000W (800W LF, 110W MF and 80W HF) , the 18HTX100 can handle even the most demanding audio content. You can be confident that this speaker will deliver powerful, clear audio that will take your breath away. The device boasts a high sensitivity of 100dB (LF) and 110dB (MF/HF) - sufficient for high SPL in almost any application.

Clear Sound Quality: High accuracy and low distortion (thanks to clever use of an aluminium demodulating ring) ensures a clear and pristine audio experience. Say goodbye to dull, muffled audio and hello to a stunning soundscape that you won\'t be able to get enough of.

Durability: The B&C 18HTX100 is built with high-quality materials and designed to last, ensuring that your audio experience will be consistent and reliable for years to come. A waterproof cone ensures long term stability in the toughest of environments. This speaker is built to withstand even the toughest conditions and deliver exceptional audio every time.

Easy Installation: The B&C 18HTX100 is designed with ease of installation in mind, making it simple to integrate into any audio setup. Whether you\'re setting up a new system or upgrading an existing one, the B&C 18HTX100 will be a breeze to install.

Now, let's dive into some of the technical specifications of the B&C 18HTX100 triaxial speaker:


  • Woofer: 18-inch (457mm) paper cone with a 4-inch (100mm) voice coil
  • Midrange and Tweeter: Combined in a time coherent ring radiator design with 2 inch exit
  • 60° x 40° nominal coverage from FEA optimised horn flare
  • Frequency Response: 44Hz-18kHz
  • Sensitivity: 100-106dB SPL
  • Impedance: 8 ohms
  • Total Power Handling: 1000W RMS, 2000W program, 4000W peak

In conclusion, the B&C 18HTX100 triaxial speaker is an exceptional audio device that provides versatility, power, clear sound quality, durability, and easy installation. Whether you're a professional audio engineer or just looking to enhance your audio experience, the B&C 18HTX100 is an excellent choice. So why wait? Elevate your audio experience with the B&C 18HTX100 triaxial speaker today!



SPECIFICATIONS:

  • Nominal Diameter 460.0 mm (18.0 in)
  • Frequency Range 44.0 - 18000.0 Hz
  • Dispersion Angle 60 x 40
  • Woofer Cone Treatment TWP Waterproof Both Sides
  • Magnet Material Neodymium Ring


SPECIFICATIONS LF UNIT:

  • LF Nominal Impedance 8 ohms
  • LF Nominal Power Handling 800 W
  • LF Continuous Power Handling 1600 W
  • LF Minimum Impedance 6.6 ohms
  • LF Sensitivity 100.0 dB
  • LF Voice Coil Diameter 100.0 mm (4.0 in)
  • LF Winding Material Aluminium
  • LF Former Material Glass Fibre
  • LF Winding Depth 25.1 mm (1.0 in)
  • LF Magnetic Gap Depth 10.2 mm (0.4 in)
  • LF Flux Density 1.5 T


PARAMETERS:

  • Resonance Frequency 44.0 Hz
  • Re 5.4 ohms
  • Qes 0.34
  • Qms 6.3
  • Qts 0.32
  • Vas 173.0 dm3 (6.11 cu ft)
  • Sd 1210.0 cm2 (187.55 sq in)
  • Reference efficiency 4.3 %
  • Xmax /- 10.0 mm
  • Xvar /- 13.0 mm
  • Mms 158.5 g
  • Bl 26.3 Txm
  • Le 1.16 mH
  • EBP 129 Hz


SPECIFICATIONS MF UNI:

  • MF Nominal Impedance 8 ohms
  • MF Minimum Impedance 6.0 ohms
  • MF Nominal Power Handling 110 W
  • MF Continuous Power Handling 220 W
  • MF Sensitivity (1W/1m) 110.0 dB
  • MF Frequency Range 0.5 - 5.5 kHz
  • MF Recommended Crossover 0.6 kHz
  • MF Voice Coil Diameter 100 mm (4.0 in)
  • MF Winding Material Aluminium
  • MF Inductance 0.21 mH
  • MF diaphragm material HT Polymer
  • MF Flux Density 1.9 T
