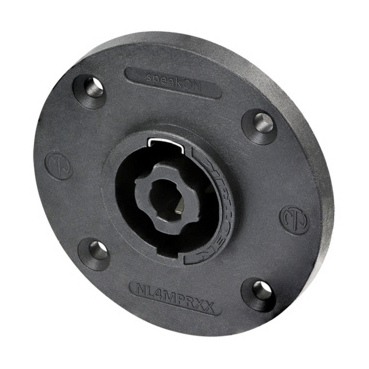

Neutrik NL4MPRXX 4-pole SpeakON Socket
New version (replacement) for NL4MPR from 2021

Product Code: NEUNL4MPRXX | Brand: Neutrik
Neutrik NL4MPRXX 4-pole SpeakON Socket
£2.53
£2.11 ex VAT
Login to see JAM Club pricing
Not a member? Join Now
£3.46 DELIVERY to mainland UK.
Neutrik NL4MPRXX 4-pole SpeakON Socket

4 pole chassis connector, black round G-size flange, countersunk thru holes, 3/16" flat tabs.


The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.


This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.


Features & Benefits


  • IEC 61984 certified > IEC 62368-1 compliant
  • Glass reinforced V-0 materials make it extremely robust and dependable
  • Precise keyway for secure mating
  • Accurate twist lock latching system
  • Metal insert in locking area
  • Airtight design - optimized for speaker applications

Technical Information


  • Gender male
  • Contact resistance ≤ 2 mΩ
  • Dielectric strength 2.8 kVac
  • Insulation resistance >0.1 GΩ (after dampheat)
  • Rated current per contact 25 A rms continuous (audio rating significantly higher, depending on signal)
  • Rated voltage 250 V ac
  • Attention speakON is NOT to be used as an AC mains or power supply connector!
  • Lifetime > 5000 mating cycles
  • Termination 3/16" flat tabs (e.g. NLFASTON)
  • Locking device Quick Lock
  • Chassis shape round G-size flange
  • Layout four thru holes
  • Contact plating Ag
  • Locking element Stainless Steel
  • Shell Polyamide (PA 6.6)
  • Contacts Copper Alloy
  • Flammability UL94 V-0
  • Temperature range -30 °C to +80 °C
