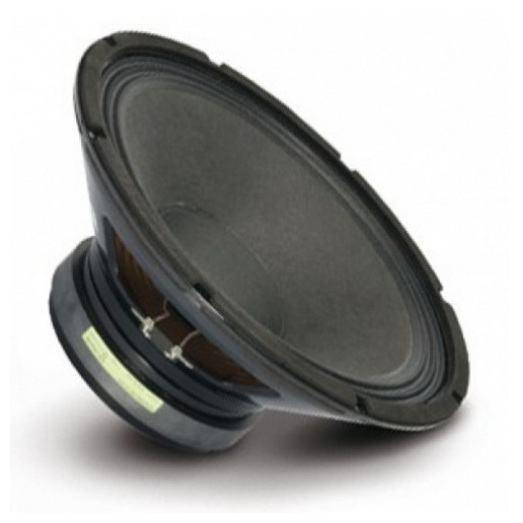

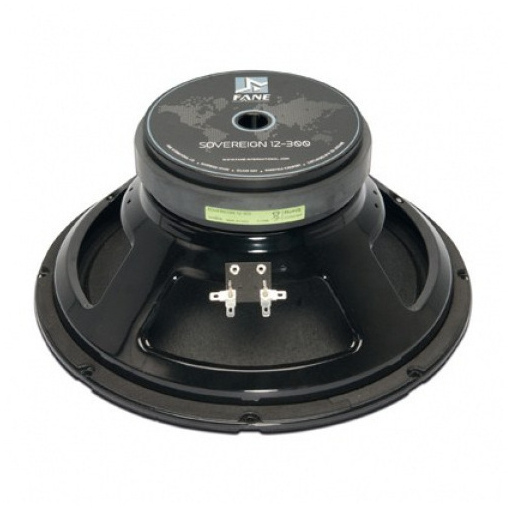

Fane Sovereign 12-300 - 12" 300W 8 Ohm
The Sovereign Series comprises fifteen cone drivers designed for a broad spectrum of sound reinforcement situations. Mid-range, fullr-ange, bass-mid and dedicated bass applications are comprehensively covered. Featuring heavy duty pressed steel chassis providing rugged durability and consistent performance in even the most demanding of environments, glass fibre voice coils capable of delivering outstanding power handling capabilities and carefully selected cone materials for smooth tonal characteristics and extended bass response, the Sovereign represents an exciting and versatile answer to the demands of a varied and demanding range of audio applications.
- 600 W Program Power.
- 97.5 dB Sensitivity (1W/1m).
- Versatile unit intended for use as a bass/ mid woofer in medium sized vented enclosures.
- Can also be used as a mid-range driver in small sealed designs.
- Optimised cone pulp offers increased strength, durability and performance.
- 2.5-inch Copper voice coil.
Thiele and Small parameters: Need some help? Read our quick guide to TS Params.
- FS Hz 46 Hz
- RE Ohms 5.75 Ohms
- Qms 5.2
- Qes 0.375
- Qts 0.35
- Vas Ltr 114
- Vd litres 0.24
- CMS (mm/N) 0.278
- BL T/m 14.8
- Mms (grms) 43
- Xmax (mm) 4.5
- Sd (cm2) 540
- Efficiency % 2.89
- Le (1kHz) 1.64 mH
ELECTRO ACOUSTIC SPECIFICATIONS:
- Nominal Chassis Diameter 12"
- Impedance 8 Ohms
- Power Handling 300 w (EIA 426A)
- Peak Power (6dB Crest Factor) 1200 w (EIA 426A)
- Usable Frequency Range -6dB 45 Hz - 4.5 kHz
- Sensitivity (1 w - 1 m) 97.5 dB
- Moving Mass inc. Air Load 43 grams
- Minimum Impedance Zmin 6.84 Ohm
- Effective Piston Diameter 262 mm
- Peak Displacement Volume of Cone Vd 0.24 litres
- Magnet Weight 56 oz
- Magnetic Gap Depth 10 mm
- Flux Density 1.1 Tesla
- Coil Winding Height 18 mm
- Voice Coil Diameter 63.5 mm / 2.5"
MATERIALS OF CONSTRUCTION:
- Former Material Glass Fibre
- Voice Coil Copper
- Magnet Material Ferrite
- Chassis Steel
- Cone Paper
- Surround / Edge Termination Polyvinyl Damped Dbl. Half Roll Linen
- Dust Dome Paper
- Connectors Solder Tag
- Polarity Positive Voltage at Red
- Terminal Causes Forward Motion of Cone
MOUNTING / SHIPPING INFORMATION:
- Overall Diameter 304.8 mm / 12.00"
- Flange Height 7 mm
- Baffle Hole Diameter F/M 286 mm
- Baffle Hole Diameter R/M 286 mm
- Gasket Supplied Front & Rear
- Fixing Holes 8x 7.0 mm on 298 mm PCD
- Depth 138 mm
- Weight 5.0 kg
- Recommended Enclosure Volume 30 -75 litres
- Shipping Weight 5.85 kg
- Packing Carton Dimensions 165 x 330 x 330 mm
